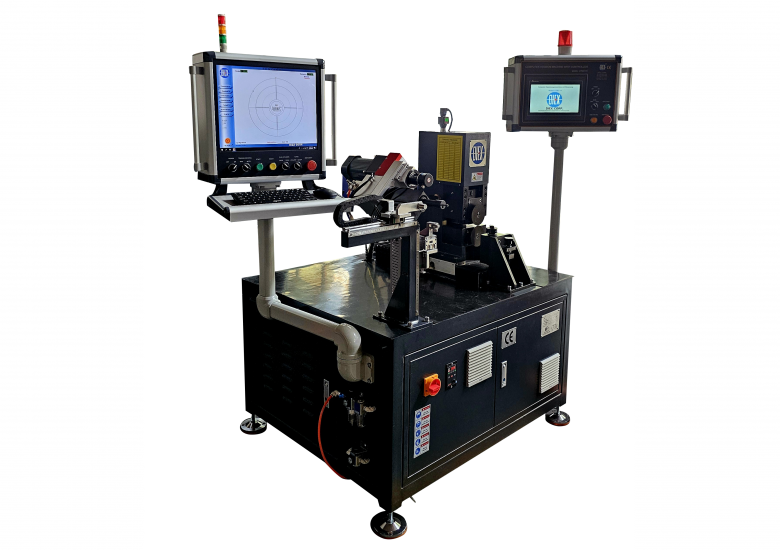

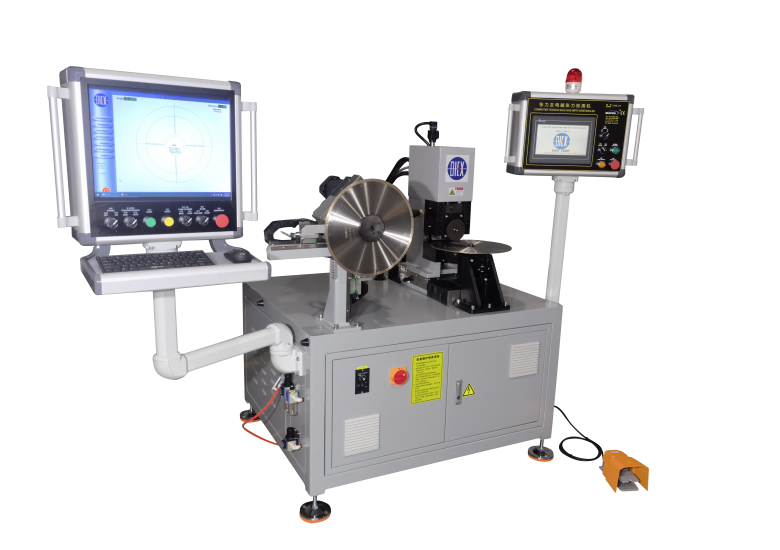

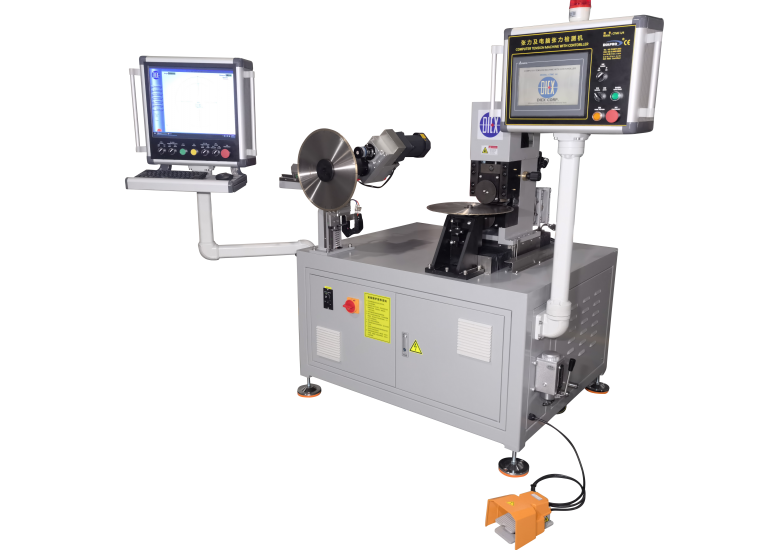

CTMC1/4 :Computer Tension Control Bench
Computer Tension Control Bench : CTMC1/4
for small diameter (100~400mm)
MAIN FEATURE
1. When rolling, the blade is fixed and roller head moves back and forth.
2. Foot Switch and HMI rotation control rolling.
3. The back and forth movement position of the roller is precisely controlled with the servomotor.
4. Precision control of rolling length and roller rotation speed with servo motor, adjustable rolling length with
compensation value.
5. Precision control of rolling pressure with proportional valve, pressure display with pressure sensor.
6. Slope angle of two roller could be adjusted.
7. A pneumatic cylinder piston with adjustable unidirectional thrust slide on vertical guide moving together with detecting
sensor on horizontal guide.
8. Automatic steel core locking system by pneumatic cylinder.
9. Automatic shank rotation and automatic checking of tensioning.
10. Fully computerized system allows creating & visualizing tension & deviation by real time data acquisition.
11. All technical data of tension & control could be stored on hard disk & print out as report form to make Q.A.
TECHNICAL DATA
* MODEL NO.: CTMC 1/4
* POWDER SUPPLY: 380V 3P 50/ 60HZ (Different Voltage and Frequencies on request)
* Power consumption:4KW
* Working Range: 100~400mm
* Adjustable Pressure Force: from 40kg to 1100kg
* Roll speed: 30rpm Variable
* Roll radius: 50mm
* Tension control pushing force: 5kg to 30 kg
* Shank rotation: 1~28 rpm
* Overall dimensions: L 2400×W 1000×H 1750(mm)
* Weight (indicative): 700kg
NOTE
This technical data may be used only for guideline of production. DIEX Corp. will reserve the right to introduce any technical modification to its own machines, also in contract acquired, which its irrevocable decision are improvements. Therefore, any datum given on the catalogues & and data sheet has only indicative value.
