MBG : Gang Saw Brazing Machine

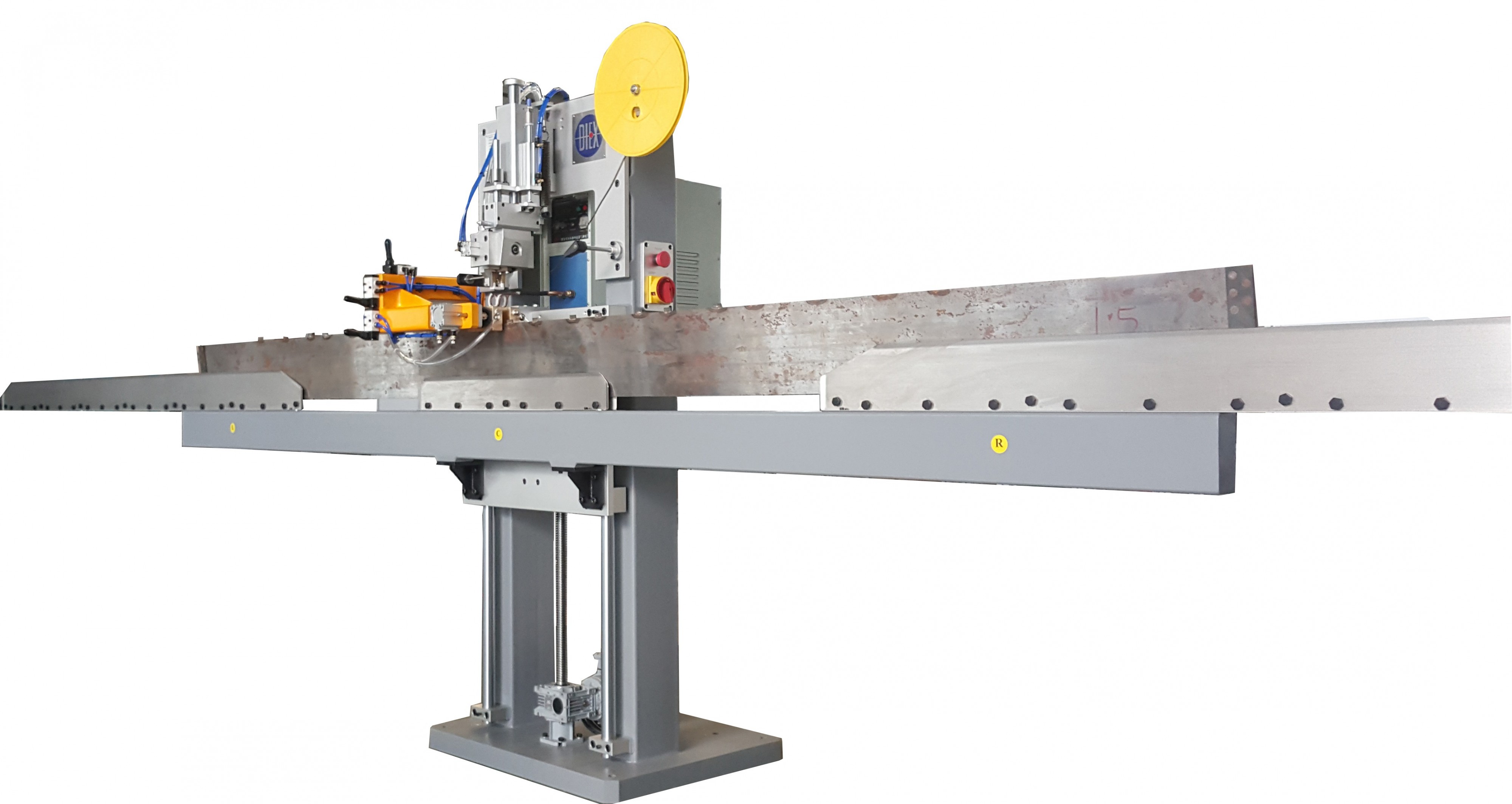

GANGSAW BRAZING MACHINE : MBG

Automatic induction brazing machine for diamond segment gang-saw blade.

GANGSAW BRAZING MACHINE : MBG

Automatic induction brazing machine for diamond segment gang-saw blade.

MACHINE FEATURES

- Manual feeding segments, transport,shank feeding of silver solder,

- High efficiency of brazing by H.F Induction generator.

TECHNICAL DATA

- MODEL NO. :      MBG

- POWER SUPPLY :      220/380V, 3PHASES, 50/60Hz

   (Different voltages and frequencies on request)

- ELECTRIC POWER  :      30 KVA

- COOLING WATER : 30 liter/min - 1~3 BARS

- AIR CONSUMPITION  : 40 liter/min - 6 BARS

-BRAZING THICKNESS:1.2~3.0mm

-BRAZING HEIGHT:9-~200mm

-POSITION ACCURANCY:

   'SURFACE OF SEGMENT TOLERANCE:+/-0.05mm

   'BLADE SYMMETRY TOLERANCE:+/-0.05mm

- SEGMENT DIMENSION LENGTH :     from 18 to 50 mm

                    HEIGHT :from 5 to 25 mm

                 THICKNESS :from 1.6 to 12 mm

- ADJUSTABLE BRAZING TIME :0 ~ 30 sec

- ADJUSTABLE COOLING TIME :0 ~ 60 sec

- OVERALL DIMENSIONS :          LENGTH : 5,000 MM

                                                   WIDTH  : 1,200 MM

                                                   HEIGHT : 2,300 MM

- WEIGHT(INDICATIVE) :                         Approx. 2,000 KG

- OPTION :                   Temp. Control system(Pyrometer)

                                     Cooling system(Chiller)

NOTE

This technical data may be used only for guideline of production. DIEX Corp. will reserve the right to introduce any technical modification to its own machines, also in contract acquired, which its irrevocable decision are improvements. Therefore, any datum given on the catalogues & and data sheet has only indicative value.

Special machines & Equipments  for Diamond Tools.
DIEX CORP. #1104 -101,Empire,127 Uisadang-daero,Yeongdeungpo-Gu,Seoul Korea.
www.diex.comsales@diex.com / T. +82 70-8877-4563 / F. +82 2-780-0098
