DC200 : Diamond Coating Machine (DC200)

DIAMOND COATING MACHINE : DC200

designed to coat synthetic diamond with metal powder in order to have the homogenuous size of granulated powder.

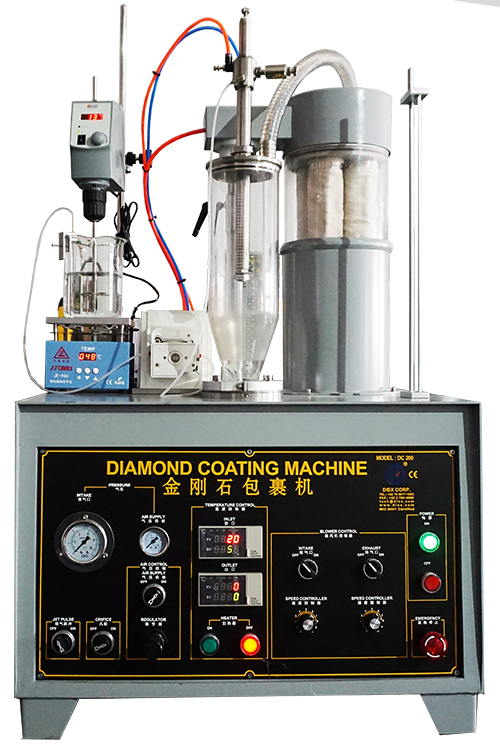

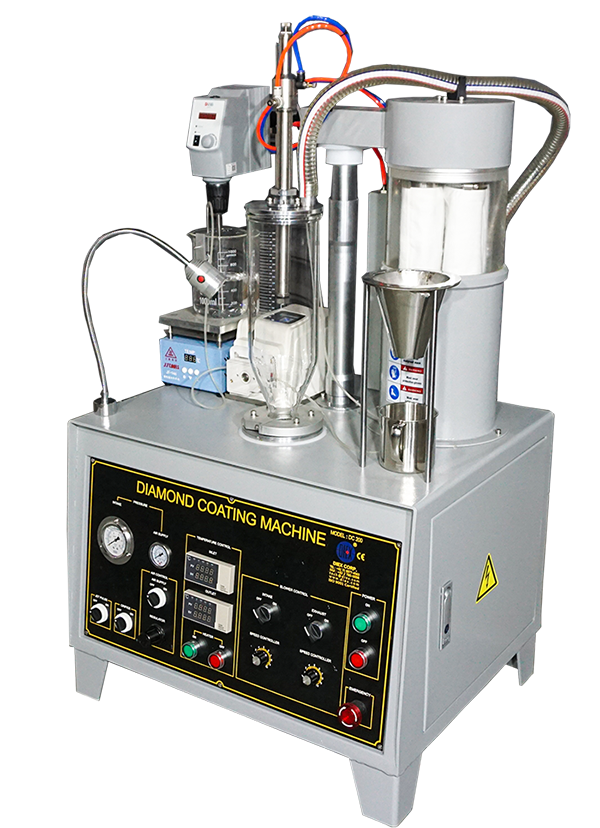

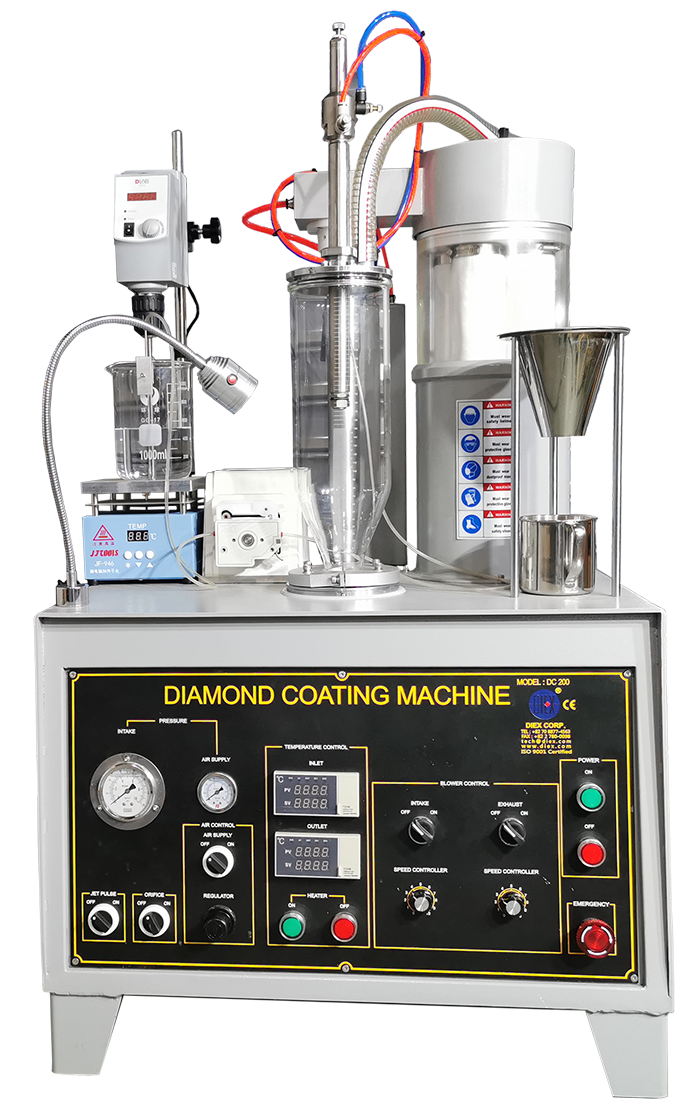

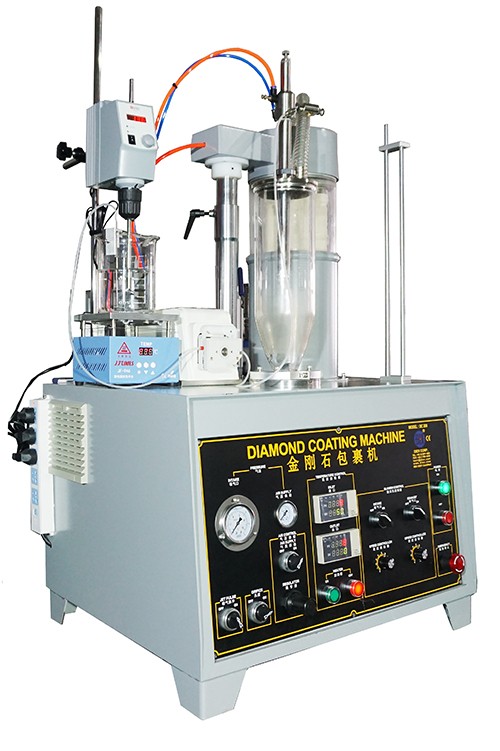

DIAMOND COATING MACHINE / MODEL NO:DC200

This machine is designed to coat synthetic diamond with metal powder in order to have the homogenuous size of granulated powder.

MACHINE FEATURES

  • AUTOMATIC CYCLE IN CLOSED CONTAINER.
  • EASY CLEANING
  • AUTOMATIC CONTROL AND HIGH PERFORMANCE.
  • HIGH SPEED MIXING & GRANULATION
  • HIGH FLUDITY CAN GIVE AUTOMATIC FEEDING OF COLD PRESS

TECHNICAL DATA

POWER SUPPLY 220V , MONO PHASE, 50/60Hz
MAX.POWER CONSUMPTION 3 KW
AIR CONSUMPTION 4Kg/Cm2 (Recommended : 6Kg/Cm2)
WORKING CAPACITY 0.5-1Liter(250cts-1000cts)
Total Volume of coating chamber 12Liters / Batch
Overall Dimension 750W x 600L x 1,000H
Weight Approx.130Kg

ADVANTAGE COATED DIAMOND

Before

After

  1. AVOID SEGREGATION OF DIAMOND.
  2. INCREASE FLUDITY(流動性)
  3. INCREASE DIA.GRIP FORCE
  4. INCREASE COLD PRESS MOULD LIFE.

COATED DIAMOND

From the left,  1. Coated 16%, / 2. mesh size 40/45  3. mesh size 30/40

Bond Coating

Cobalt Coating

Diamond Coated by Bond Powder

DIEX CORP. has technology to make very thick diamond coating!

NOTE

This technical data may be used only for guideline of production. DIEX Corp. will reserve the right to introduce any technical modification to its own machines, also in contract acquired, which its irrevocable decision are improvements. Therefore, any datum given on the catalogues & and data sheet has only indicative value.
