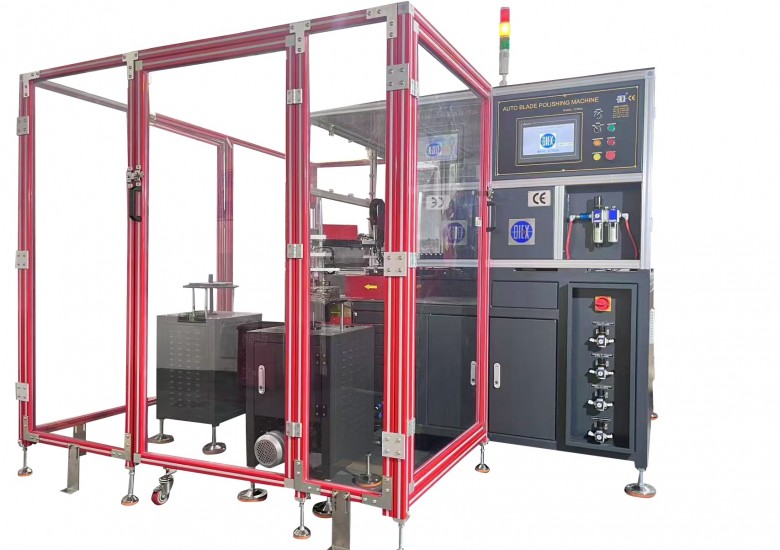

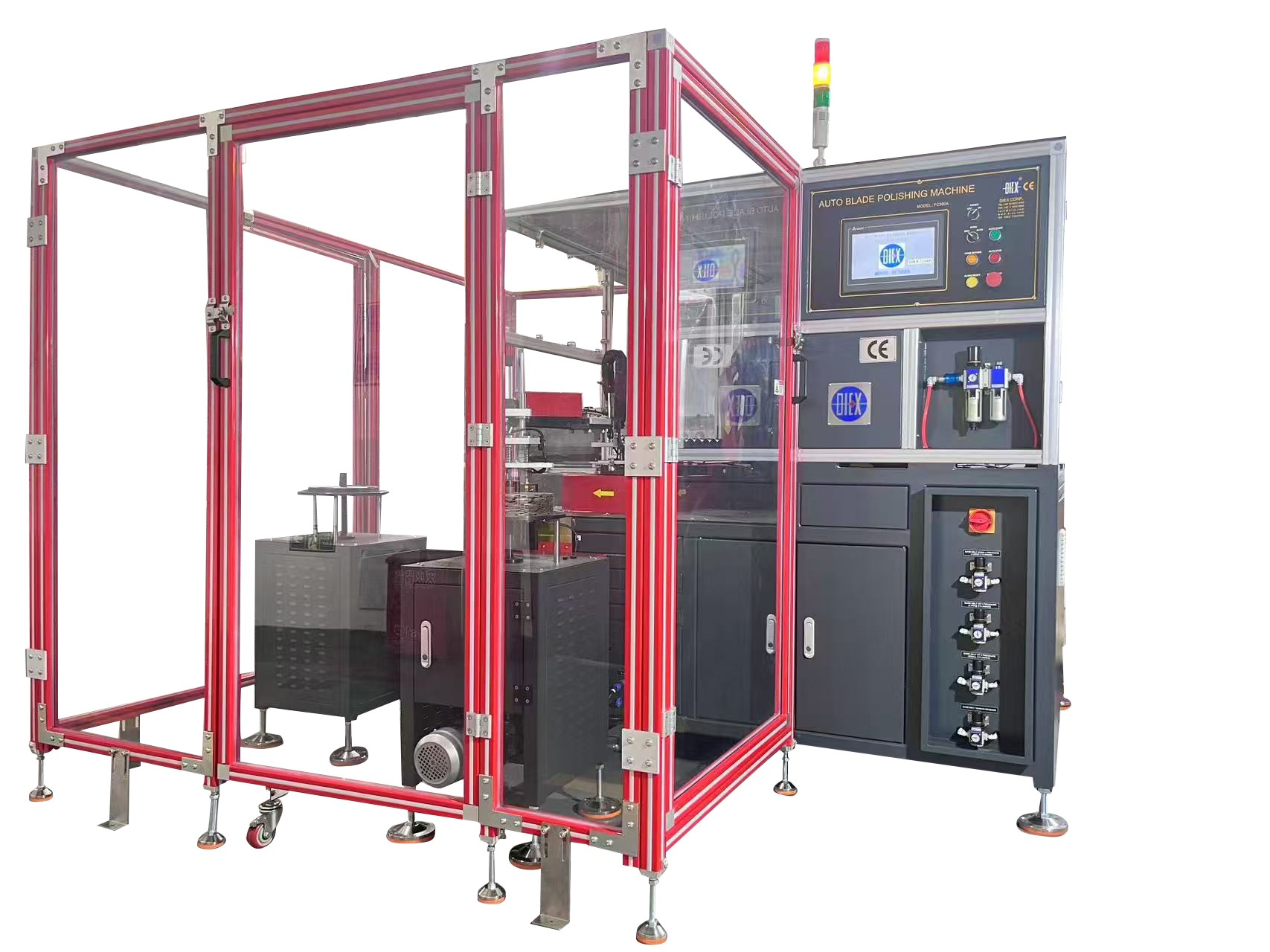

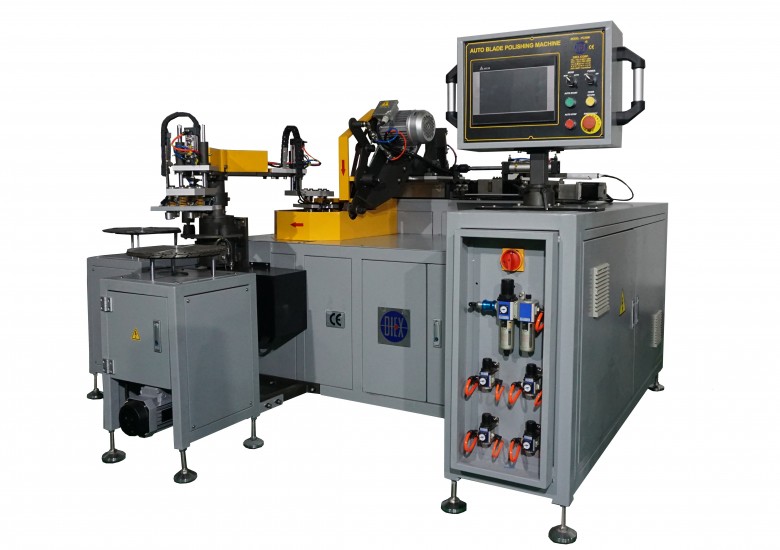

FC300A : Auto Blade Polishing Machine

Auto Blade Polishing Machine : FC300A

designed to polish blade in automatic way, auto loading & unloading polishing blade by sand belt and cleaning margin area by steel brush.

Auto Blade Polishing Machine / FC300A

This machine is designed to polish blade in automatic way, auto loading & unloading polishing blade by sand belt and cleaning margin area by steel brush, which will increase productivity and less labor.

Once polishing of one side blades finished, operator must move blades and polish & clean the other side of blades in auto way.

TECHNICAL DATA

Model No FC300A
Electric Power 5KVA
Blade Diameter 100 TO 300
Grinding Belt Speed 470meter/min
Turn Table Size 410
Turn Table Rotation Speed 200~500RPM
Machine Dimensions Approx.2,000W x 2,500L x 1,600H
Machine Weight Approx. 1,500kg
Saw Diameter In mm 300 (12")
Both side grinding & cleaning time per blade Approx. 120 sec
Saw Production in 8 hours Approx. 240
Saw Production per month (25 days) Approx.6,000

NOTE

This technical data may used only for guideline of production. DIEX Corp. will reserve the right to introduce any technical modification to its own machines, also in contract acquired, which is irrevocable decision are improvement, therefore, any datum given on the catalogue & data sheet has only indicative value.

Special machines & Equipments  for Diamond Tools.
DIEX CORP. #1104 101-Dong127,Uisadang-daero,Yeongdeungpo-Gu,Seoul,Korea
www.diex.comsales@diex.com / T. +82 70-8877-4563 / F. +82 2-780-0098
