FC500G : Auto Gang Saw Cleaning Machine

Automatic Gang Saw Cleaning Machine (FC500G)

This machine is designed for cleaning of Gang Saw Blade which was lusted and dirty after cutting, passing steel brush or Nylon brush to remove oil and rust then dry gang saw Blank in continuous way.

AUTOMATIC GANG SAW CLEANING MACHINE

MODEL NO.  FC500G

This machine is designed for cleaning of Gang Saw Blade which was lusted and dirty after cutting, passing steel brush or Nylon brush to remove oil and rust then dry gang saw Blank in continuous way.

TECHNICAL DATA

1. Model:FC500G

2. Power:380V,3P.50/60Hz

3 .Power Consumption:31.5KW

 - Abrasive Rotation Motor (Head 1):5.5KW

 - Brush Rotation Moter (Head 2): 5.5KW

 - Brush Rotation Moter (Head 3): 3KW

 - Reduction Motor: 1.5KW

4. Penumatic Cylinder:Dia.63x75mm 0.2Mpa

                   Steel Brush:Dia.195x50mm

                  (Consumption:6000M/plate

                  Abrasive Stone Mesh:60#

                 (Abrasive consumption:140M/set 3 stone)

5. Cleaning Range:width 180mmx endless length

6. Productivity:4m/min

7. Working Table Height:750mm

8. Machine Dimension:1350L×850W×1550Hmm

   Roller Bench:4400Lx380Wx770mmH

9. Weight :Approx.1000kg( Roller Bench:500Kg)

10. All safety standard & alarm system

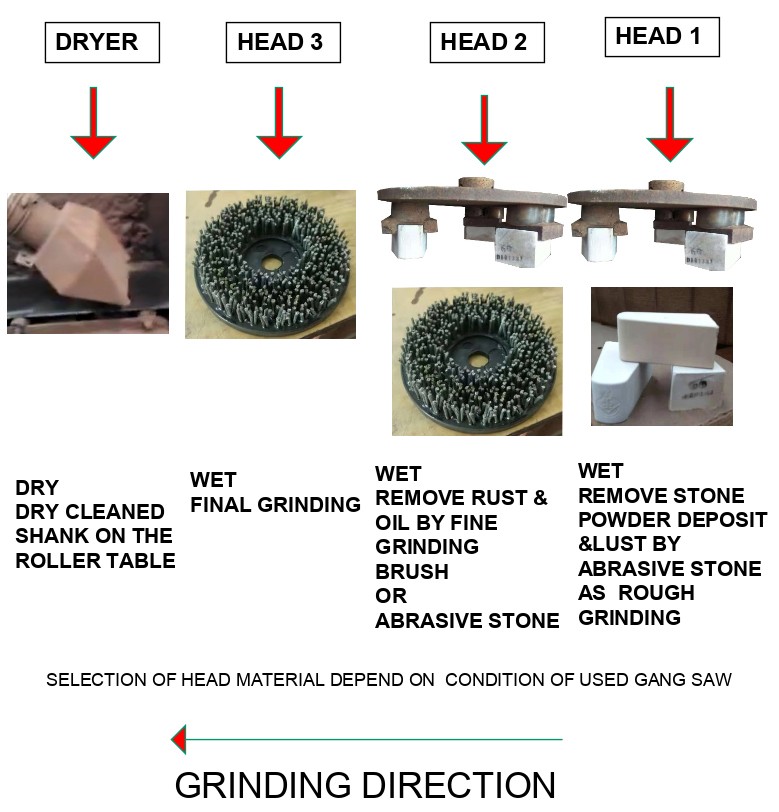

HEAD DESIGN CONCEPT

3 HEADS + Dryer

Head No 1: Abrasive stone (3 each)

Head No 2: Abrasive Stone or Steel Brsuh

Head No 3: Steel Brush

Dryer

All heads are rotating by motor and pressing by pneumatic cylinder

NOTE

This technical data may be used only for guideline of production. DIEX Corp. will reserve the right to introduce any technical modification to its own machines, also in contract acquired, which its irrevocable decision are improvements. Therefore, any datum given on the catalogues & and data sheet has only indicative value.

Special machines & Equipments  for Diamond Tools.
DIEX CORP. #1104 -101,Empire,127 Uisadang-daero,Yeongdeungpo-Gu,Seoul Korea.
www.diex.comsales@diex.com / T. +82 70-8877-4563 / F. +82 2-780-0098
