COMPUTER TENSION CONTROL BENCH : CTC4/20

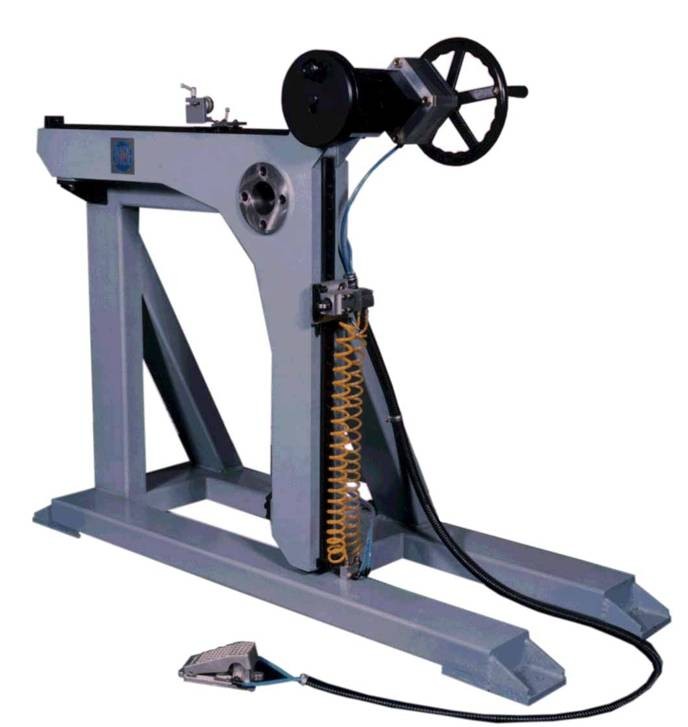

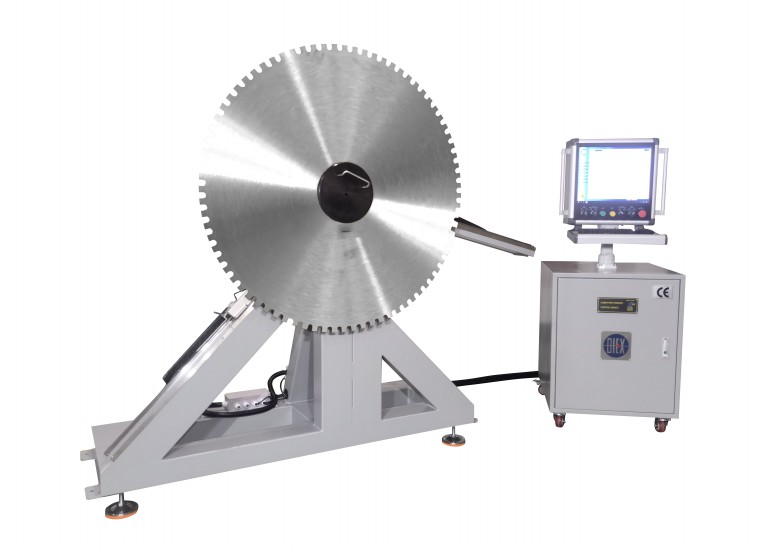

COMPUTER TENSION CONTROL BENCH / MODEL: CTC4/20

Tension Control bench is used to check the concentricity, the side run-out and tension of steel core of the diamond saw blade, by visual system on computer. software(TENDIEX) & encoder.

MACHINE FEATURES

• the table with a control spindle mounted on precision bearings with different diameter of flanges.

• A pneumatic cylinder piston with adjustable unidirectional thrust slide on vertical guide moving together with sensor on horizontal guide.

• Automatic steel core locking system by pneumatic cylinder.

• All data could be stored on computer data & print out report by printer.

TECHNICAL DATA

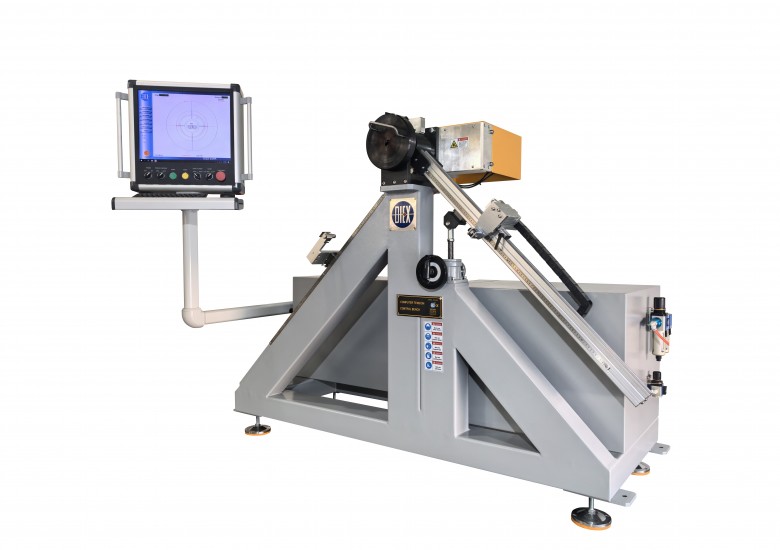

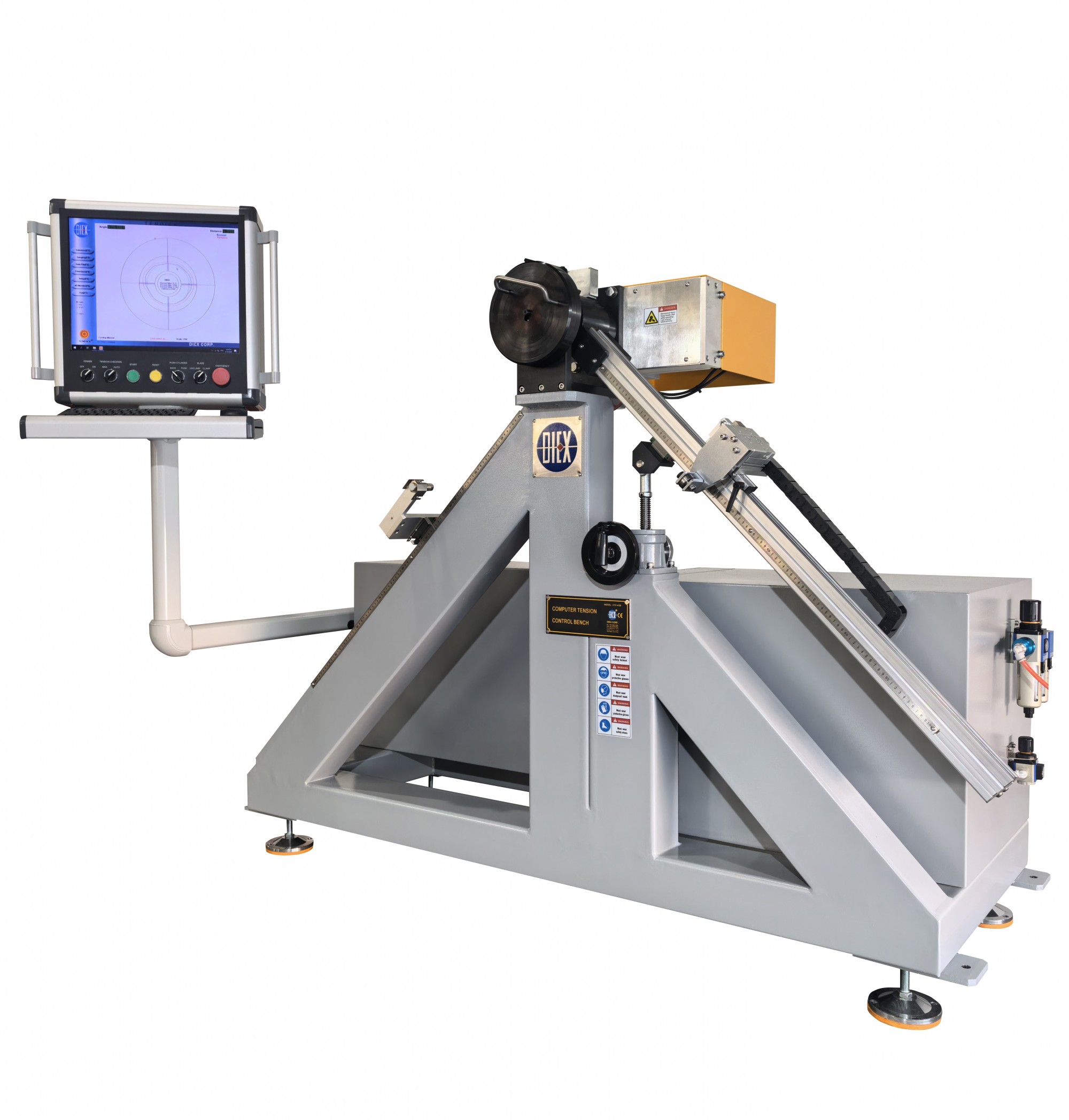

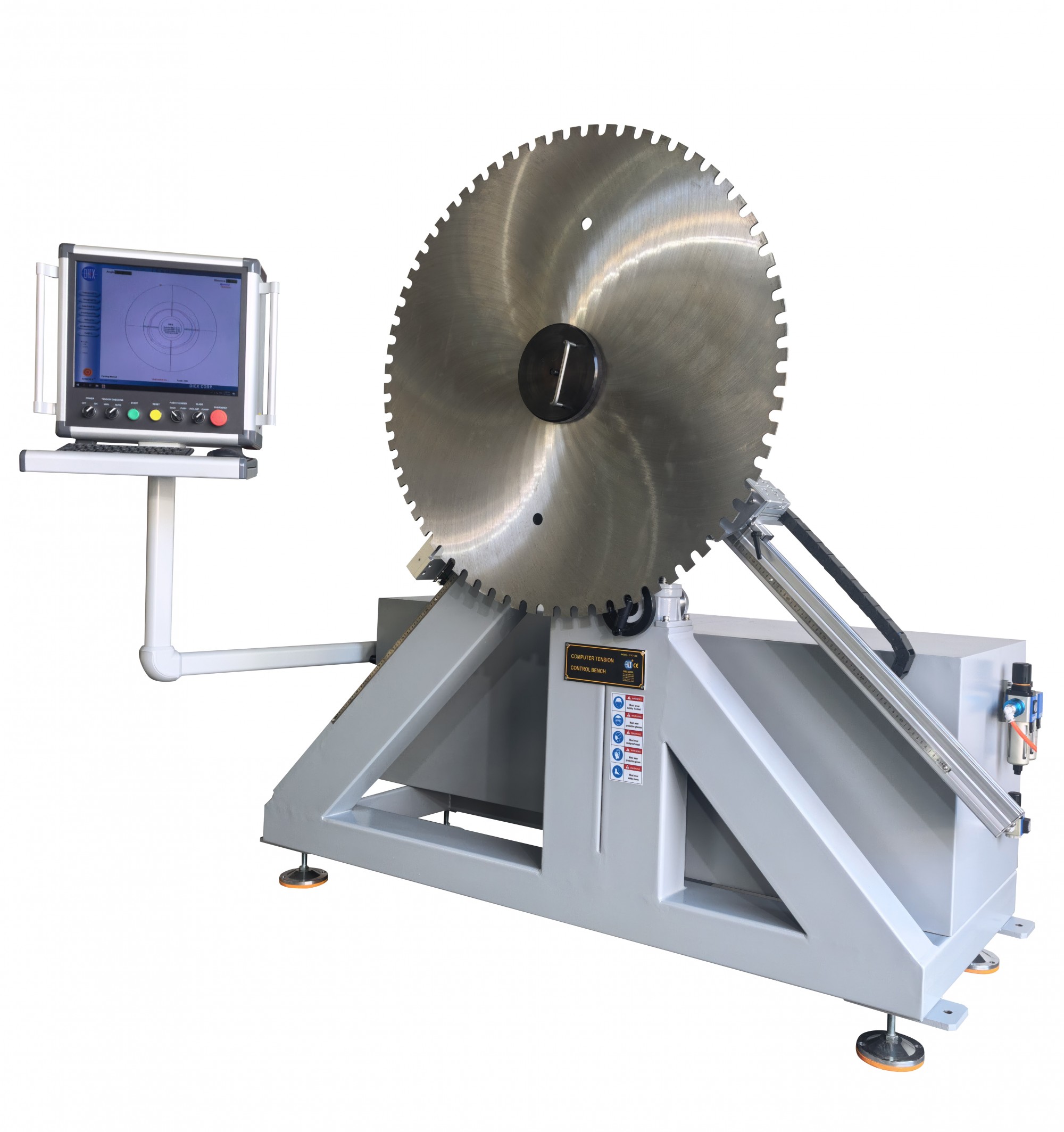

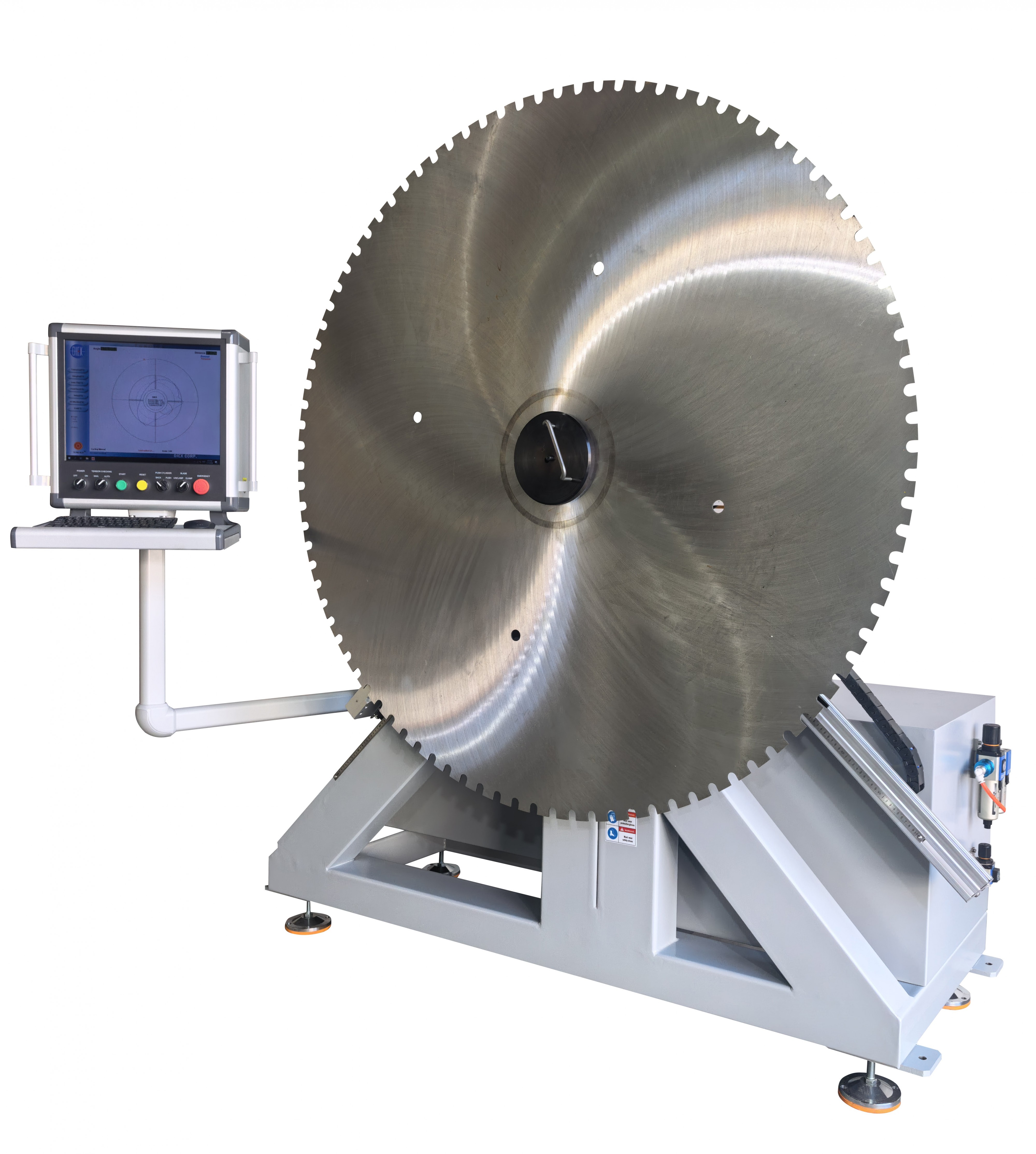

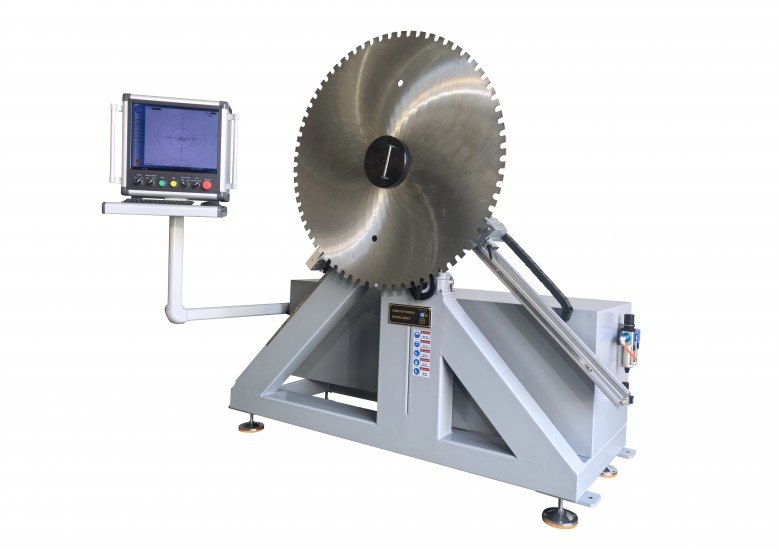

COMPUTER TENSION CONTROL BENCH MODEL: CTC4/20 (triangle)

Triangle Tension Control Bench is used to check the concentricity, the side run-out and tension of steel core of the diamond saw blade, by visual system on computer software(TENDIEX) & encoder.

This machine has angle adjustment between sensor and pusher in order to get precise tension of the single blade according to material to be cut. Triangle shape allow to hammer on the machine to adjust flaness,espcially big diameter blade.

MAIN FEATURES

• The table with a control spindle mounted on precision bearings with different diameter of flanges.
• Tension & side run out checking with angle between sensor & pusher to be  not only 90 degree but also from 85 to 150 degree for different material to be cut.
• A pneumatic cylinder piston with adjustable unidirectional thrust slide on vertical guide moving together with sensor on horizontal guide
• Automatic steel core locking system by pneumatic cylinder.
• All data could be stored on industrial computer data & print out report by printer

TECHNICAL DATA

• Model No.: CTC 4/20(triangle)
• Blade Diameter: From 300mm to 2,000mm
• Blade Rotation: Auto ,speed adjustable 3~28rpm
• Compressive Air Consumption: 5 LITERS/MIN
• Overall Dimension: 1850L×650W×1390H (mm) (BENCH), 750L×600W×1580H (mm) (CONTROL BOX)
• Weight (Indicative): Approx. 460 Kg

NOTE

This Technical data may used only for guideline of production. DIE X CORP..will reserve the right to introduce any technical modification to its own machines, also in contract acquired, which is irrevocable decision are improvement, therefore any datum given on the catalogue & data  sheet has only indicative value.
