PD16 : Powder Dispenser

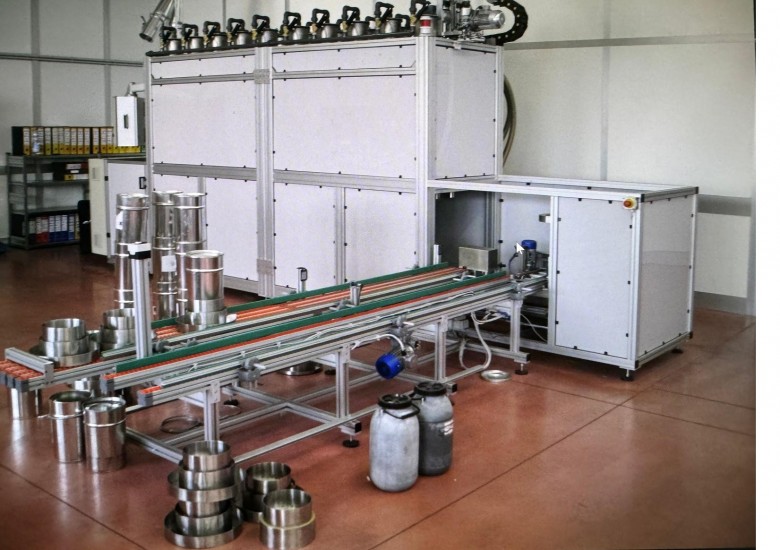

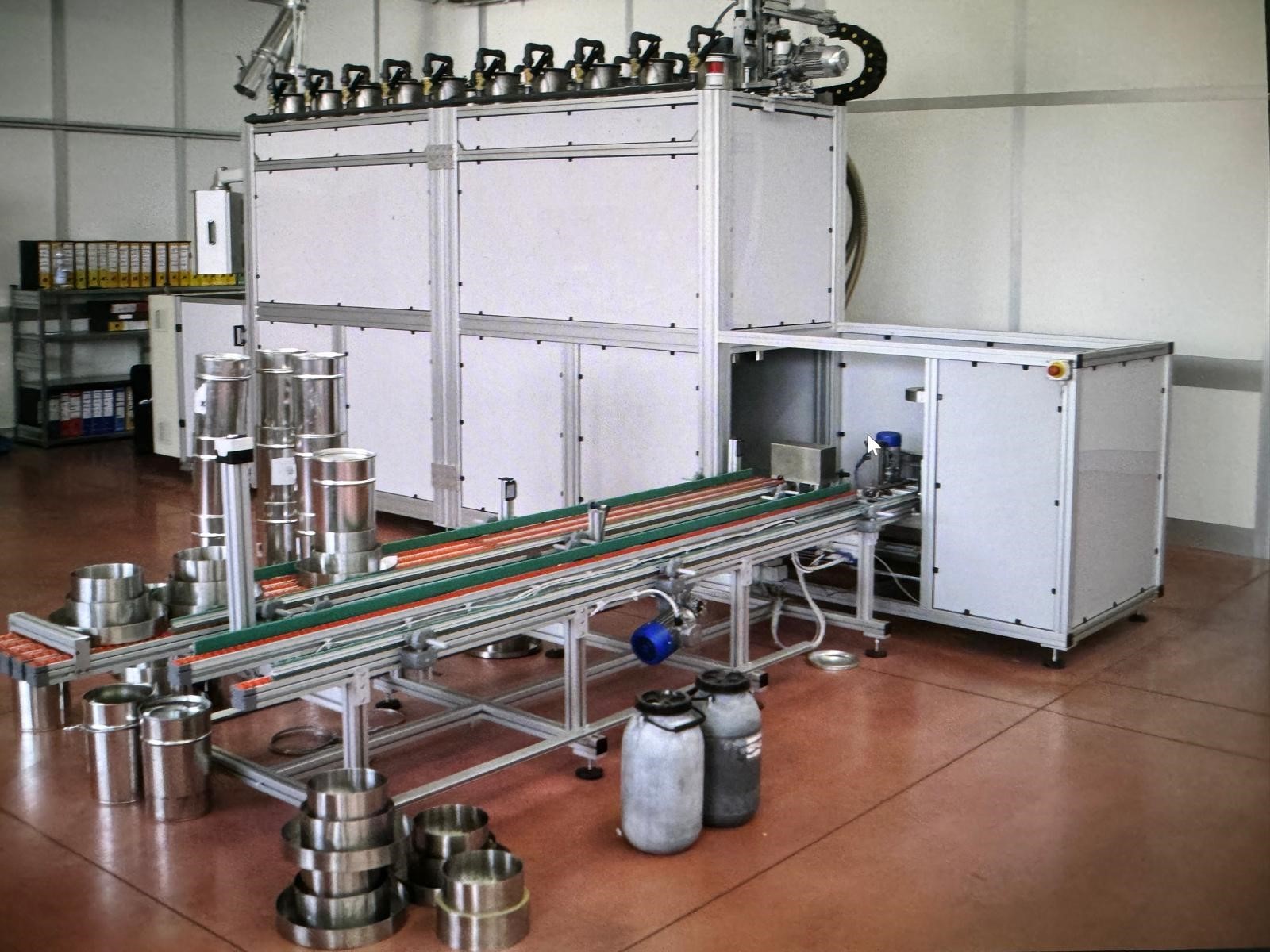

POWDER DISPENSER : PD16

POWDER DISPENSER MODEL NO.  PD16

Automatic preparation of mixtures of metal powders.

MACHINE FEATURES

  • Automatic machine to prepare metal,non metal powders mixture in the desired quantity according to recipespre-established by the operator.
  • The machine includes 16 stainless steel containers with 25 liters capacity which are fixed to a turntable.
  • Each container is equipped with a palette dosing system specific to each type of powder.
  • The mixture weight is calculated by a PC interfaced electronic scale.
  • The containers are positioned over the scale as the turntable turns: discharge position over the scale.
  • Filling stops when requested weight is reached.
  • The dosed powder is collected in a plastic container from 5 to 10 liters, specific for the TB10 mixer.
  • The recipes can be stored in the PC which operates the machine.
  • The mixture preparation is carried out automatically according to the selected formula setting the requested quantity.
  • The recipes can be stored in the PC of the machine or an external PC to generate orders.
  • The PC, according to the scale weight given, adjusts the vanes rotating speed which release the powder.
  • The machine is provided with a turbine suction system with operating filter on the scale and in the filling bin of the containers.
  • The turbine outlet is to be connected to the powder collecting system of the plant.
  • The system is equipped with a powder loading system (stainless steel bin with internal hopper) for filling containers without direct contact with the powders by the operator.
  • External protection box.
  • Machine complies CE regulations.

TECHNICAL DATA

  • Standard Equipment
  • N.16 stainless steel containers for powder, capacity 25litres
  • N.1 Mettler electronic scale capacity 15kg.
  • N.1 manual containers filling bin
  • N.1 air suction system
  • N.1 control panel with PC IBM compatible
  • N.1 printer for weight printout.
  • Options
  • Automatic loading/unloading system of plastic containers (from 5 to 10 liters) by a scale equipped with roller and conveyor belt.
  • Plastic containers with 5 to 10 liters capacity.
  • Stainless steel containers with 25 liters capacity specific for types of powders.

        Pre-arrangement for interface with external PC.

        Acquisition system and data printout.

        Barcode

        Pre-arrangement for PC modem installation for remote assistance.



Technical Data

  • Productivity (depends on type of powder) 18 kg/h
  • Power supply 380 / 400 V,    3phs,    50 Hz
  • Max. power consumption 1.5 kVA
  • Controller PC
  • Air consumption(filtered) 2 l/min    6 bar
  • Stainless steel containers  number 16
  • capacity 25 l
  • max. loading 30 kg
  • Scale Mettler
  • capacity 15 kg
  • maximum load available 12.5 kg
  • precision +/- 1g
  • Colour RAL 7042
  • Overall dimensions (approx..) 2150 x 2750 x 2200 (h) mm
  • Overall weight (approx.)   2500kg

NOTE

This technical data may be used only for guideline of production. DIEX Corp. will reserve the right to introduce any technical modification to its own machines, also in contract acquired, which its irrevocable decision are improvements. Therefore, any datum given on the catalogues & and data sheet has only indicative value.

Special machines & Equipments  for Diamond Tools.
DIEX CORP. #1104 -101,Empire,127 Uisadang-daero,Yeongdeungpo-Gu,Seoul Korea.
www.diex.comsales@diex.com / T. +82 70-8877-4563 / F. +82 2-780-0098
