AUTO BRAZING MACHINE FOR CIRCULAR & GANG SAW : GFAB10

AUTO BRAZING MACHINE FOR CIRCUALR & GANGSAW

MODEL NO.  GFAB10

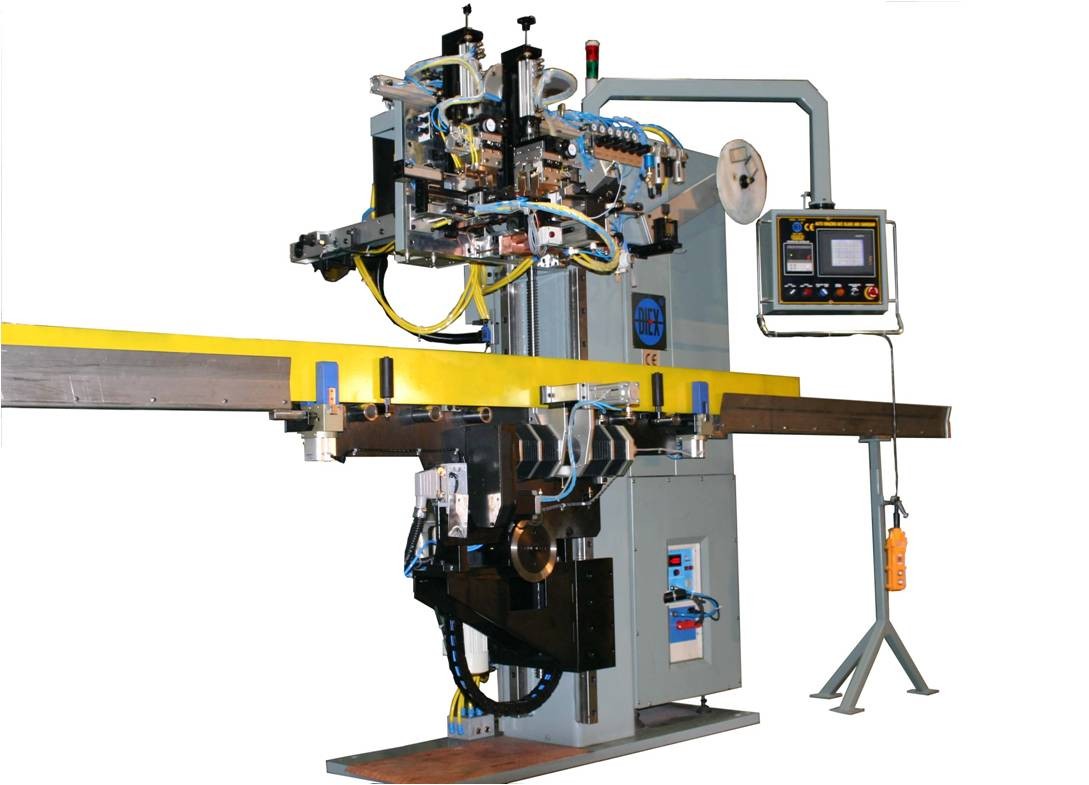

Automatic induction brazing machine for diamond segment gang-saw blade and circular saw blade

MACHINE FEATURES

- Automatic feeding segments, transport,shank feeding of silver solder enable good quality of brazing.

- Fully automatic control by PLC & monitor program.

- High efficiency of brazing by F.E.T. type generator.

TECHNICAL DATA

- MODEL NO. :               GFAB10

- POWER SUPPLY :       220/380V, 3PHASES, 50/60Hz

                                      (Different voltages and frequencies on request)

- ELECTRIC POWER  :      30 KVA

- COOLING WATER :        30 liter/min - 1~3 BARS

- AIR CONSUMPITION  :   40 liter/min - 6 BARS

- DIAMETER OF THE SAW BLADE :    from 400 to 2,000 mm

- SEGMENT DIMENSION LENGTH :         from 18 to 50 mm

                                          HEIGHT :        from 5to 25 mm

                                          THICKNESS :  from 1.6 to 12 mm

- ADJUSTABLE BRAZING TIME :   0 ~ 30 sec

- ADJUSTABLE COOLING TIME :   0 ~ 60 sec

- OVERALL DIMENSIONS :          L: 5,000xW2,300xH2,300mm

- WEIGHT(INDICATIVE) :              Approx. 2,000 KG

- OPTION :                                    Temp. Control system,Cooling system.

NOTE

This technical data may be used only for guideline of production. DIEX Corp. will reserve the right to introduce any technical modification to its own machines, also in contract acquired, which its irrevocable decision are improvements. Therefore, any datum given on the catalogues & and data sheet has only indicative value.

Advanced Machines & Equipment for Diamond Tools
DIEX CORP.
www.diex.com / sales@diex.com / T. +82 70-8877-4563 / F. +82 2-6442-3804
