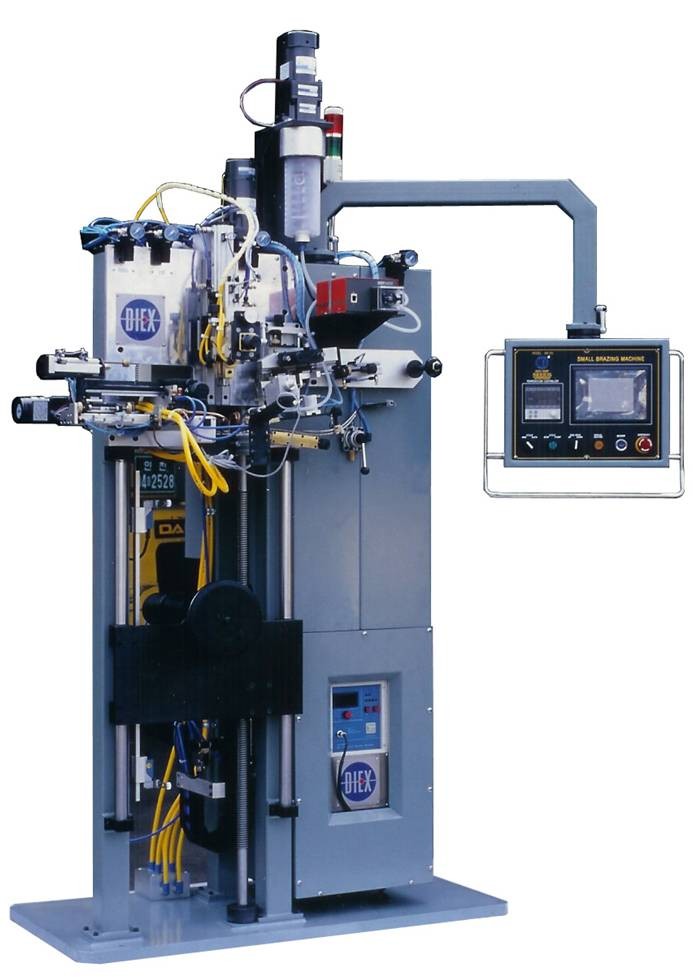

AUTO SMALL DIA.BRAZING MACHINE : SAB7

Automatic H.F. induction brazing machine for small diameter circular saw blade (Max.1200mm)

AUTO SMALL DIA.BRAZING MACHINE : SAB7

Automatic H.F. induction brazing machine for small diameter circular saw blade(Max.1200mm)

MACHINE FEATURES

- Automatic feeding segments, transport,shank feeding of silver solder,

   enables good quality of brazing.

- Fully automatic control by PLC & monitor program.

- High efficiency of brazing by H.F Induction generator.

TECHNICAL DATA

- MODEL NO. :      SAB7

- POWER SUPPLY :      220/380V, 3PHASES, 50/60Hz

                                     (Different voltages and frequencies on request)

- ELECTRIC POWER  :  20 KVA

- COOLING WATER : 30 liter/min - 1~3 BARS

- AIR CONSUMPITION  :  40 liter/min - 6 BARS

- DIAMETER OF THE SAW BLADE :  from 230 to 1,200 mm

- SEGMENT DIMENSION LENGTH :  from 18 to 50 mm

                    HEIGHT : from 5to 25 mm

                 THICKNESS : from 1.6 to 12 mm

- ADJUSTABLE BRAZING TIME : 0 ~ 30 sec

- ADJUSTABLE COOLING TIME : 0 ~ 60 sec

- OVERALL DIMENSIONS :          LENGTH : 500 MM

                                                    WIDTH  : 1,200 MM

                                                    HEIGHT : 2,300 MM

- WEIGHT(INDICATIVE) :              Approx. 2,000 KG

- OPTION :                                   Temp. Control system

                                                    Cooling system

NOTE

This technical data may be used only for guideline of production. DIEX Corp. will reserve the right to introduce any technical modification to its own machines, also in contract acquired, which its irrevocable decision are improvements. Therefore, any datum given on the catalogues & and data sheet has only indicative value.
