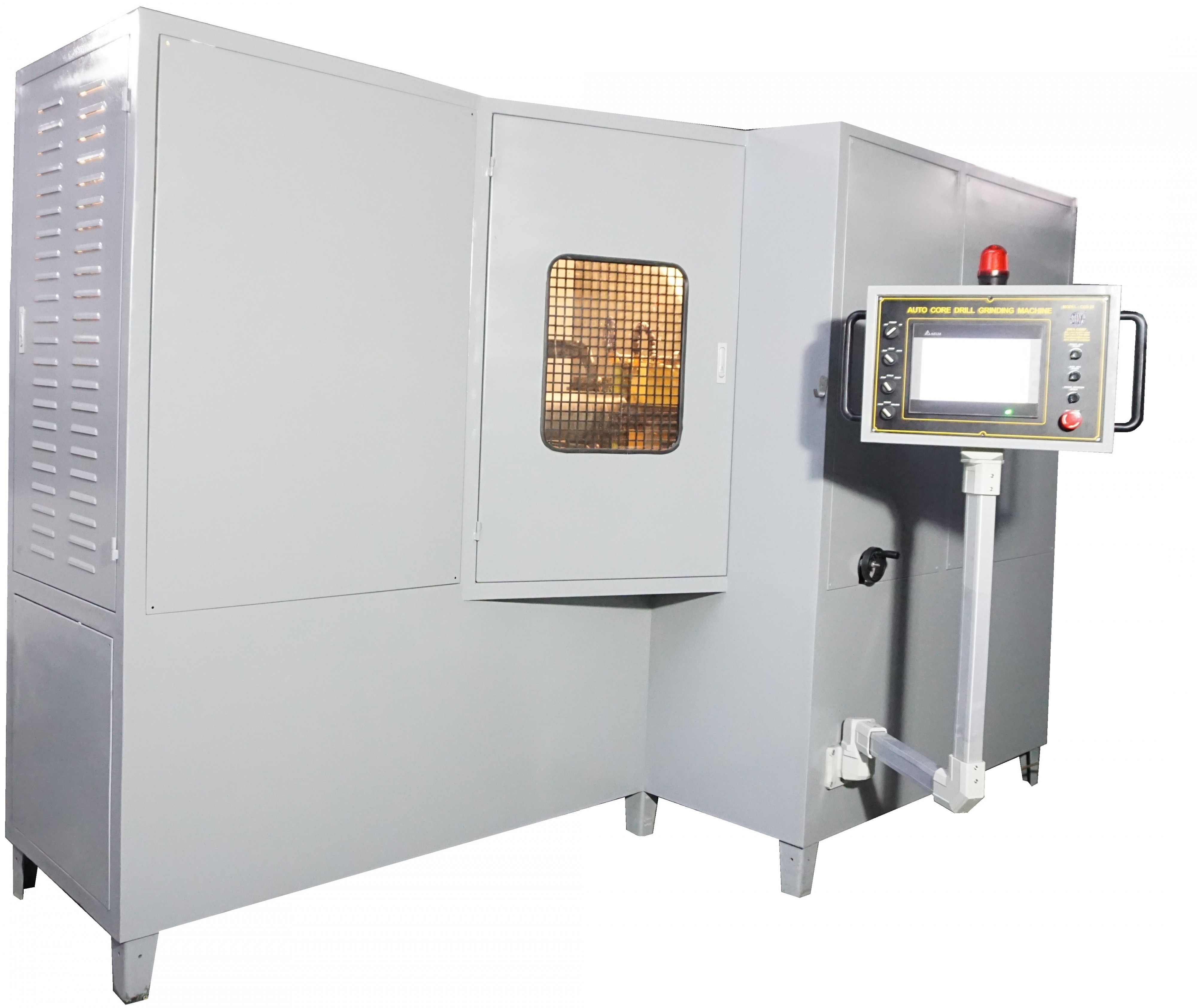

CGB20 : Auto Core Drill Grinding Machine

AUTO CORE DRILL GRINDING MACHINE : CGB20

AUTO CORE DRILL GRINDING MACHINE MODEL NO.  CGB20

This machine is designed to grind (dressing) core drill tips by speed control and hydraulic system chuck.

MACHINE FEATURES

* Automatically Grind Core drill  (diameter 50mm- 250mm )

* Rotation speed adjustable by inverter

* Hydralic Chuck clamp core drill to ensure qulaity of grinding

* Special three point synchrozed shank clamping device

* Dust ventilation +cooling water circulation system.

TECHNICAL DATA

* MODEL NO            CGB20

* POWER SUPPLY   220/380 V,  3PHASES, 60 Hz

                               (different voltages are available upon request)

* MAX.POWER CONSUMPTION   17kw

* WORKING RANGE (CORE DIAMETER)    50~250mm(Option 350mm)

* AVAILABLE CORE SHANK LENGTH   100 - 40 mm

* GRINDING STONE SPEED    1500rpm

* CHUCK ROTATION SPEED   0 - 500rpm

* MACHINE DIMENSION   W 140 0mm x L 1100mm x  H 1100mm

* WEIGHT    APPROX.  480 Kg

NOTE

This technical data may be used only for guideline of production. DIEX Corp. will reserve the right to introduce any technical modification to its own machines, also in contract acquired, which its irrevocable decision are improvements. Therefore, any datum given on the catalogues & and data sheet has only indicative value.

Special machines & Equipments  for Diamond Tools.
DIEX CORP. #1104 -101,Empire,127 Uisadang-daero,Yeongdeungpo-Gu,Seoul Korea.
www.diex.comsales@diex.com / T. +82 70-8877-4563 / F. +82 2-780-0098
