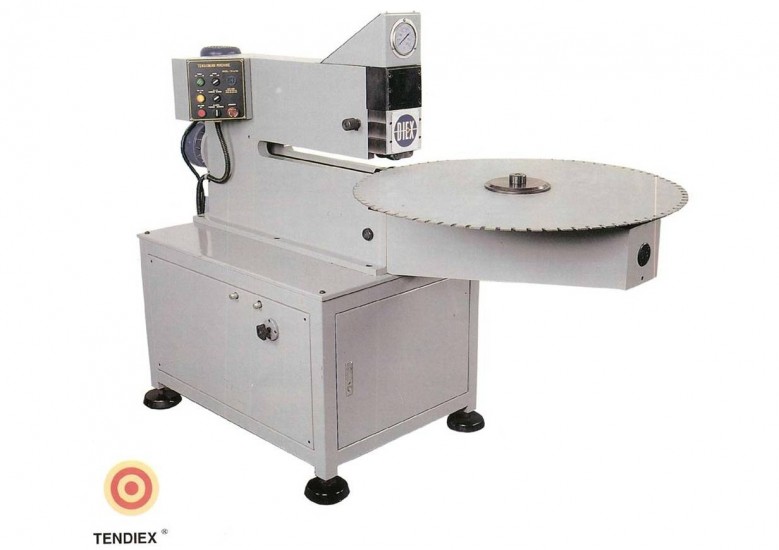

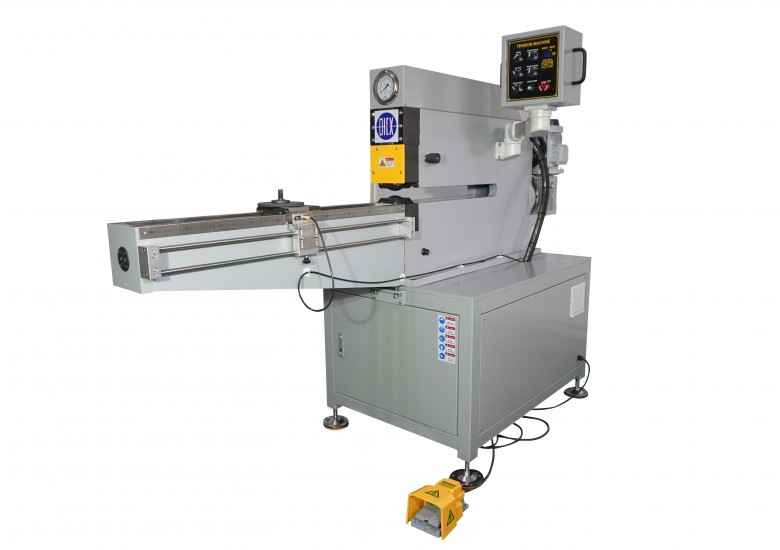

TM4/20 : Tension Machine

TENSION MACHINE : TM4/20

Tensioning machine diamond discs diameter 400-2,000mm.

TENSION MACHINE    MODEL:TM4/20

Tensioning machine diamond discs diameter 400-2,000mm.

MACHINE FEATURES

* Adjustable rolling pressure

* Pedal switch rotation control with automatic approaching of pressing rolles.

* Direction reverseability and change of speed and rotation of pressing rolles.

* Exclusive devices to modify the inclining between pressing rolles.

TECHNICAL DATA

* MODEL NO   TM 4/20

* POWER SUPPLY   380 VOLT,  50/60 HZ

                               (Different voltages and frequencies on request)

* MAX. POWER CONSUMPTION  3KVA

* ROLLES TURING SPEED  FROM 1 TO 22 METER/MIN

                                          (ADJUSTABLE & VARIABLE)

* PRESSURE FORCE (ADJUSTABLE)   FROM 200 TO 6,000KG

* STANDARD ROLLERS CAMBER   125 RADIUS

* ROLLES DIAMETER  75MM

* OVERALL DIMENSION  LENGTH  :1,600MM

                                        WIDTH   :800MM

                                        HEIGHT  :1,500MM

* WEIGHT(INDICATIVE)APPROX.2,500 Kg





NOTE

This technical data may be used only for guideline of production. DIEX Corp. will reserve the right to introduce any technical modification to its own machines, also in contract acquired, which its irrevocable decision are improvements. Therefore, any datum given on the catalogues & and data sheet has only indicative value.

Special machines & Equipments  for Diamond Tools.
DIEX CORP. #1104 -101,Empire,127 Uisadang-daero,Yeongdeungpo-Gu,Seoul Korea.
www.diex.comsales@diex.com / T. +82 70-8877-4563 / F. +82 2-780-0098
