CNC-LA: CNC Laser Welding Machine with loading

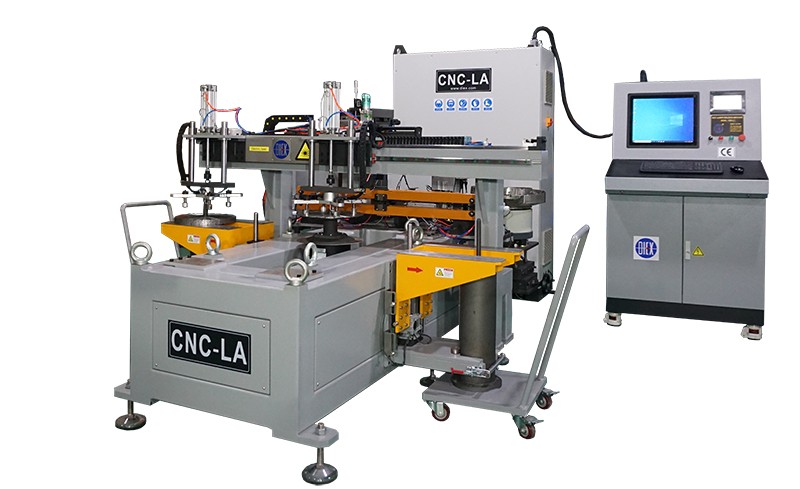

CNC Laser Welding Machine with loading & unloading (Model: CNC-LA)

CNC Laser Welding Machine with Loading & Unloading

MODEL NO.  CNC-LA1800

      Welding Range: 150~1,800mm

*Option

1.Working Range

CNC-LA600  Welding Range:150~600mm

CNC-LA1200 Welding Range:150~1200mm

CNC-LA1600 Welding Range:150~1600mm

2.Welding Head

Wobbling Head

CNC-LA 1800

Welding range:150~1800mm

CNC-LA600

Welding Range:150mm~600mm

MACHINE FEATURES

Welding Range:105 ~ 1,800mm

Auto loading & unloading up to max. diameter. 600mm

LARGE DIAMETER CNC CONTROLLED LASER WELDING SYSTEM POSSIBLE  FOR BIG DEMOLITION & WALL SAW

TECHNICAL DATA SHEET

 Fiber Laser Generator                            3.0 Kw – IPG Fiber Laser Generator

                                                                Option 3.3Kw-Raycus Fiber Laser ( Customer supply or Diex supply )

Welding range                                         150-1800 mm

                                                                Refer to option list

Controller                                                CNC +PLC

Welding Head                                          Fiber Head                   Option: Wobbling Head

Overall dimensions                                 4200L x 2900Wx 2500mmH

Weight (Approx.)                                     2,500kgs

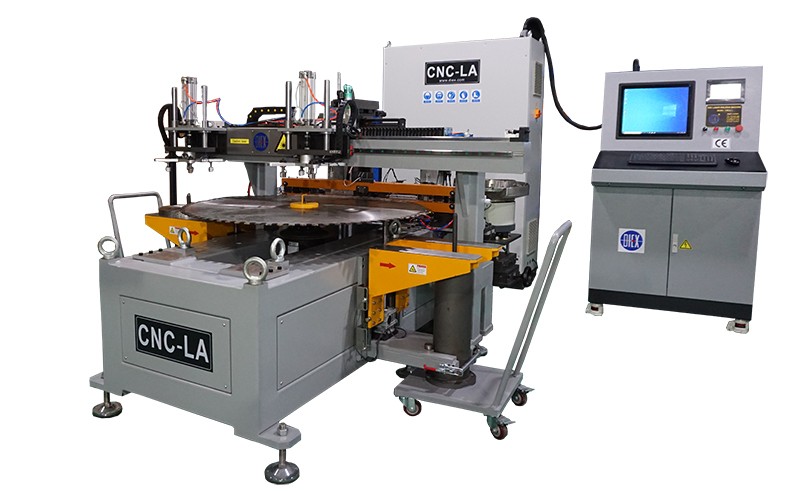

LARGE DIAMETER CNC CONTROLLED LASER WELDING SYSTEM need to hold big blade with 4 arms to allow very stable

 C axis rotation

SEGMENT FEEDING  (Option)

Vertical Cartridge Magazine (approx.300segs)

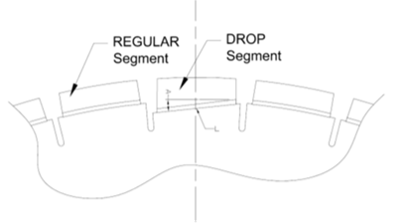

REGUALR SEGMENT

DROP SEGMENT

NOTE

This technical data may be used only for guideline of production. DIEX Corp. will reserve the right to introduce any technical modification to its own machines, also in contract acquired, which its irrevocable decision are improvements. Therefore, any datum given on the catalogues & and data sheet has only indicative value.
