MBG20H : Brazing Machine for Circular and Gang Saw

BRAZING MACHINE FOR CIRCULAR AND GANG SAW : MBG20H

Welding machine for circular saw and gang saw blades for working in horizontal position with high frequency generator.

BRAZING MACHINE FOR CIRCULAR & GANG SAW

Welding machine for circular saw and gang saw blades for working in horizontal position with high frequency generator. Also can be used for de-solderring of used segments in very efficient way.

MACHINE FEATURES

  • Blank-bearing spindle of diameter 16mm, gliding on ground profiles.
  • Ground locking pads with internal water cooling. The upper pad is triggered by a non swivelling pneumatical piston.
  • Adjustable segment-carrying pad, made out of heat resistant material.

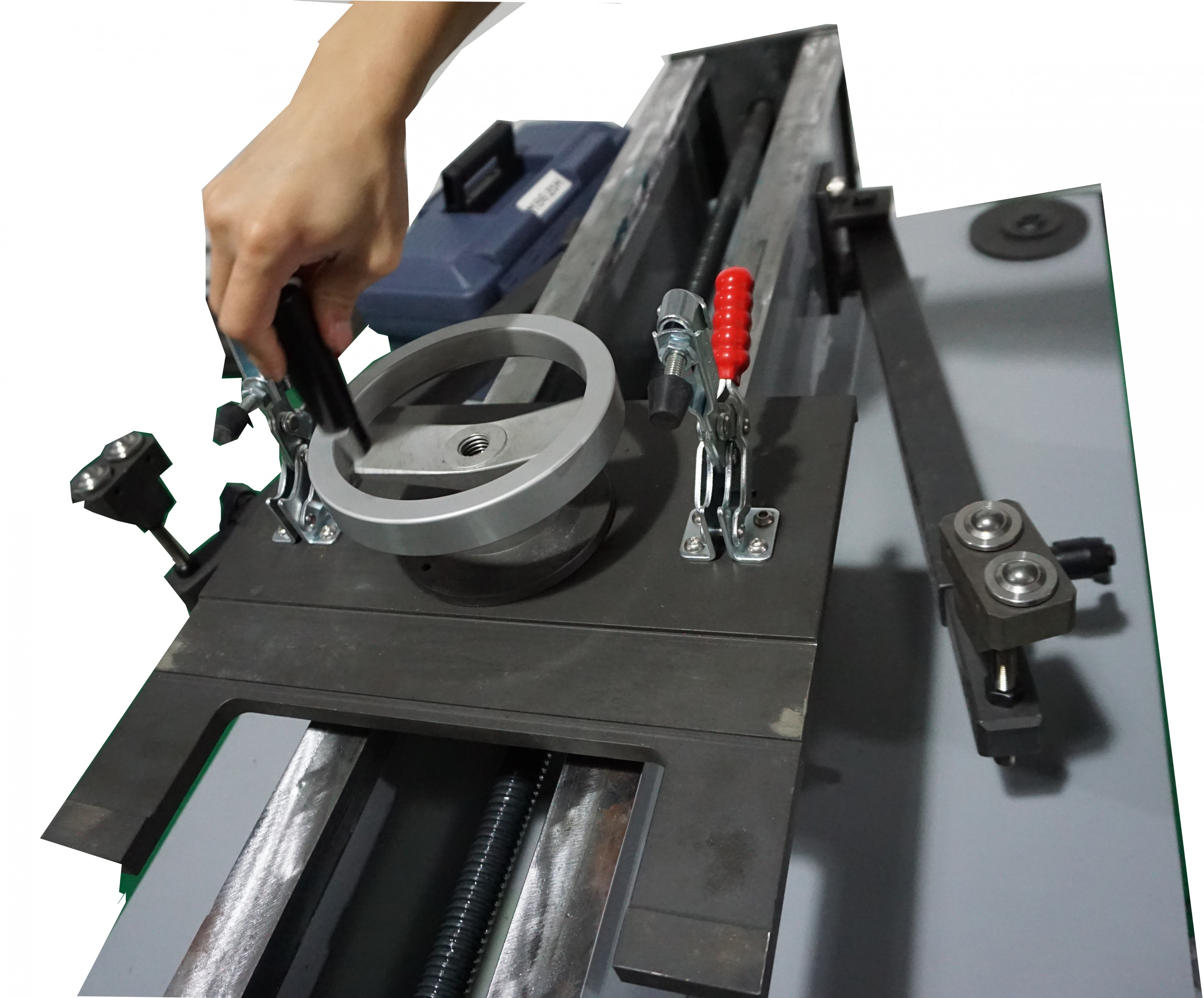

  • Pad-carrying trolley made out of alluminium, mounted on ground spindles and adjustable by means of centesimal screw (guage clock). Built-in locking.
  • Oblique adjustment of the trolley, for welding conical segments.
  • Cooling circuit.
  • Adjustable silent-blocks on feet.
  • Electrical panel with built-in safeties.
  • Two adjustable shank holding arms.

TECHNICAL DATA

  • MODEL NO  :    MBG20H
  • POWER SUPPLY :  220/380 VOLT, 3P, 50/60Hz
  • ELEC. POWER : 28KVA (GENERATOR INCLUDED)
  • COOLING WATER :    APPROX.  25 LITERS/MIN. 1-3  Bar
  • AIR COMSUMPTION   APPROX.  40 LITERS/MIN. 6  Bar
  • DIAMETER RANGE   FROM 250MM TO 2,000MM
  • SEGMENT LENGTH  FROM 18MM TO 50MM

                      HEIGHT  FROM 5MM TO 25MM

                      THICKNESS  FROM 1.6MM TO 12MM

  • DIMENSIONS  LENGTH 1,750MM  WIDTH 1,100MM  HEIGHT 1,400MM
  • WEIGHT APPROX.600KGS
  • OPTION :  TEMP. CONTROL SYS. / GENERATOR
  • BRAZING METHOD : HORIZONTAL
  • CHARACTER :  MANUAL

NORMAL ACCESSORIES

  • 3 rings for blank-carrying spindle (outer diameter to be agreed)

ACCSSORIES(OPTION)

  • 25Kw high frequency generator with one output
  • Adaptation of high frequency generator.
  • Gang saw brazing device

NOTE

This technical data may be used only for guideline of production. DIEX Corp. will reserve the right to introduce any technical modification to its own machines, also in contract acquired, which its irrevocable decision are improvements. Therefore, any datum given on the catalogues & and data sheet has only indicative value.

Special machines & Equipments  for Diamond Tools.
DIEX CORP. #1104 -101,Empire,127 Uisadang-daero,Yeongdeungpo-Gu,Seoul Korea.
www.diex.comsales@diex.com / T. +82 70-8877-4563 / F. +82 2-780-0098
