CNC-LA1200 : Auto Laser Welding Machine

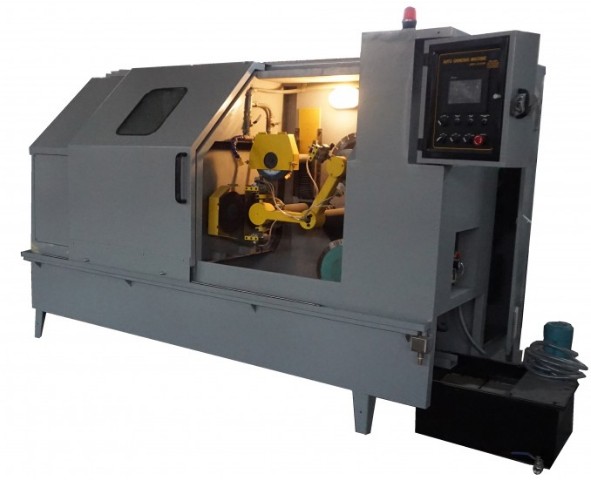

Auto Laser Welding Machine (Model: CNC-LA 1200)

Auto Laser Welding Machine with the welding range of 150~1,200mm The other diameter range, please refer to option below

Auto Laser Welding Machine: CNC-LA1200

Automatic: Loading & Unloading (150~600mm)

Manual: Loading & Unloading(600~1,200mm)

This Auto Laser Welding  Machine was to weld  Circular Saw Blade with auto loading & unloading.

MACHINE FEATURES

* Automatic loading and unloading of ϕ150~600mm circular saws;

* By clamping the shank and seg with a special structure, the shank and seg.

   are automatically centered without being affected by changes in thickness;

 *Clamp the shank and seg with a high-precision pneumatic cylinder to prevent deformation

   during welding;

* Automatic seg supply using a combination of vibrating bowl feeder and cartridge reduces

   manual seg. alignment work;

 *Auto Edge Detection: Sensor automatically measures shank radius and start and end points;

 *A variety of different drop seg. & two seg. can be welded to one tooth;

TECHNICAL DATA

 -Model: CNC-LA1200

 -Power Supply: 380V, 3P, 50/60Hz;

 -Electricity consumption: 6KW (excluding chiller and laser generator);

- Air consumption: 10L/min, 0.4~0.6Mpa;

 -Welding range: Φ150~1200mm;

 -Automatic mounting range: Φ150~600mm;

 -Movement method: bogie movement;

 -Segment supply method: Bowl Vibrator and cartridge combination;

 -Control method: PLC+10” touch screen;

 -Welding speed: Approx.8sec/seg;

- Productivity: Approx.17 blades/hour (based on Φ350mm/24 seg. circular saw);

 -Welding precision: ±0.05mm;

 -Machine Dimension: 2500L×2150W×1930H (mm);

 -Weight: approx.1,500 kg;



WELDABLE SEGMENT SHAPES

SEG.SELF CENTERING SYSTEM

The shank and seg. clamping use a special high-precision

hydraulic cylinder (precision ±0.005mm), and the shank and seg clamping hydraulic cylinder are on the same plane (CNC precision machining), so after clamping the shank and seg, the centers are always in a straight line and are automatically centered mechanically match.

In addition, the hydraulic cylinder clamping force is large, preventing deformation due to heat generation duringwelding after clamping the seg. and shank



OPTION

CNC-LA600 :150~600mm :auto loading & unloading

CNC-LA1000:150~600mm:auto loading & unloading 600~1000mm: manual loading & unloading

CNC-LA1600:150~600mm:auto loading & unloading 600~1600mm: manual loading & unloading

CNC-LA1800:150~600mm :auto loading & Unloading 600~1800mm: manual loading & unloading

NOTE

This technical data may used only for guideline of production. DIEX Corp. will reserve the right to introduce any technical modification to its own machines, also in contract acquired, which is irrevocable decision are improvement, therefore, any datum given on the catalogue & data sheet has only indicative value.

Advanced Machines & Equipment for Diamond Tools
DIEX CORP.
www.diex.com / sales@diex.com / T. +82 70-8877-4563 / F. +82 2-6442-3804
