SAG1200AC new : Auto Grinding Machine

AUTO GRINDING MACHINE : SAG1200AC NEW

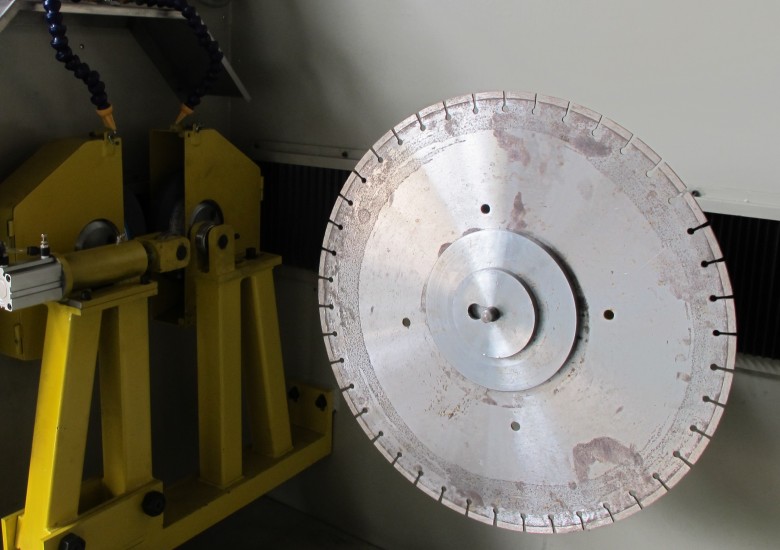

designed to dress & grind side part & front part of diamond saw blades (14-48 inch), etc to grind side & front part separately or simultaneously

AUTO GRINDING MACHINE  MODEL NO.  SAG`1200AC

This machine is designed to dress & grind side part & front part of

diamond saw blades(14~48 Inch), etc to grind side & front part separately

or simultaneously,in auto way,by using stepping motors for infeeding and oscillation

speed of grinding wheel & main spindle,adjustable by motor & inverter

MACHINE FEATURES

- Adjustable main spindle rotation speed and display in monitor

- Speed adjustable oscillation of side wheels

- Auto blade locking/Unlocking system.

- Anti noise & dust system

- Dust & abrasive collecting cooling unit

- Infeeding of grinding wheels are controlled by program with stepping motor

- Auto lubrication system. (L.M Block & Ball Screw)

- Main spindle stationary type

- Inverter & LVDT can keep linear speed of side/front wheel according to consumption of wheel.

TECHNICAL DATA

- MODEL NO. :              SAG 1200AC

- POWER SUPPLY :      380V/220V, 3PHASES, 50/60Hz

                                      (Different voltages and frequencies on request)

- ELECTRIC POWER  :      12 KVA

- BLADE DIAMETER :       350 TO 1200 MM

- BLADE SPEED :              60 ~ 200 RPM

- SIDE GRINDING WHEEL MOTOR  :          1,460 RPM ADJUSTABLE

- FRONT GRINDING WHEEL MOTOR :        1,460 RPM ADJUSTABLE

- SIDE GRINDING WHEEL DIAMETER  :      Φ305 X Φ75 X 40T

                                                                   Φ305 X Φ75 X 40T

- FRONT GRINDING WHEEL DIAMETER :  Φ305 X Φ75 X 40T

- AIR CONSUMPITION  : 20 LITER - 6 BARS

- COOLING WATER CONSUMPITION  : 50 LITER - 2~4 BARS

- WATER TANK CAPACITY : 150 LITERS

- COOLING :WATER WITH RUST INHIBITOR   (600Lx480Wx280mmmH)

- OVERALL DIMENSIONS :          LENGTH : 3,200 MM

                                                    WIDTH  : 2,200 MM

                                                    HEIGHT : 2,150 MM

- WEIGHT(INDICATIVE) :              Approx. 3,500 KG

-Overhead Hoist Crane 300kgs(option)  with Hoist Crane Height:  3,180mmH



NOTE

This technical data may be used only for guideline of production. DIEX Corp. will reserve the right to introduce any technical modification to its own machines, also in contract acquired, which its irrevocable decision are improvements. Therefore, any datum given on the catalogues & and data sheet has only indicative value.
