FAB150AR : Full Auto Brazing Machine for Ceramic S

FULL AUTO BRAZING MACHINE FOR CERAMIC CALIBERATION RING

FULL AUTO BRAZING MACHINE for Ceramic Caliberation Ring

MODEL NO.  FAB150AR

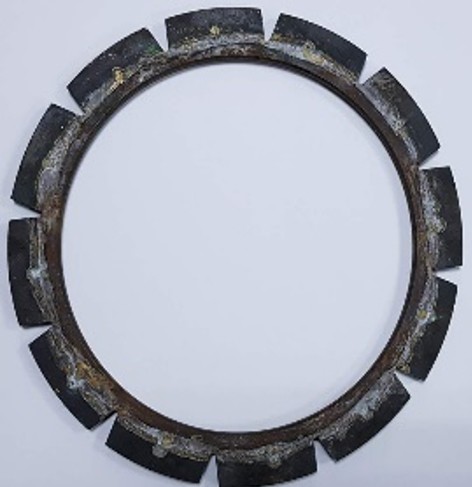

High frequency automatic small brazing machine for diamond segments on the ring with

diameter only for 150mm ring for Caliberation Roll with Special loading & unloading device

MACHINE FEATURES

* Automatic feeding of segements,transport,rotation of shank & feeding silver solder,enable good quality of brazing

* Automatic loading & unloading of shank

* High efficiency same diameter diamond Ring for Ceramic caliberation roll production.

* Automatic self diagnosis function

* High efficiency of brazing by HF type generator & sepecial heating coil.

TECHNICAL DATA

* MODEL NO: FAB150AR

* POWER SUPPLY 380 VOLT, THREEPHASES, 50Hz

* MAX.POWER CONSUMPTION: 25KW

* COOLING WATER: APPROX.25 LITERS/MIN. 2-5  Bars

* MAX.COMPRESSED AIR CONSUMTION: APPROX.40 LITERS/MIN. 6 Bars

* BRAZING RANGE: 150mm ring fixed

* ROTATION of STEEL CORE: By SERVO MOTOR

* OVERALL DIMENSION: L 1,700MMx W 1,100MM x  x H 2,000MM

* WEIGHT: APPROX.  1,300 Kg

NOTE

This technical data may be used only for guideline of production. DIEX Corp. will reserve the right to introduce any technical modification to its own machines, also in contract acquired, which its irrevocable decision are improvements. Therefore, any datum given on the catalogues & and data sheet has only indicative value.

Special machines & Equipments  for Diamond Tools.
DIEX CORP. #1104 -101,Empire,127 Uisadang-daero,Yeongdeungpo-Gu,Seoul Korea.
www.diex.comsales@diex.com / T. +82 70-8877-4563 / F. +82 2-780-0098
