250CH + 200R : Gang Saw Shank Press

HYDRAULIC PRESS TO CUT & HOLE ,RIVET GANG SAW SHANK Model:250CH 200R

designed for Cutting & Holing, Riveting of Gang Saw Blank in very efficient way.

GANGSAW SHANK CUTTING, HOLLING, REVETING MACHINE: 250H+200R

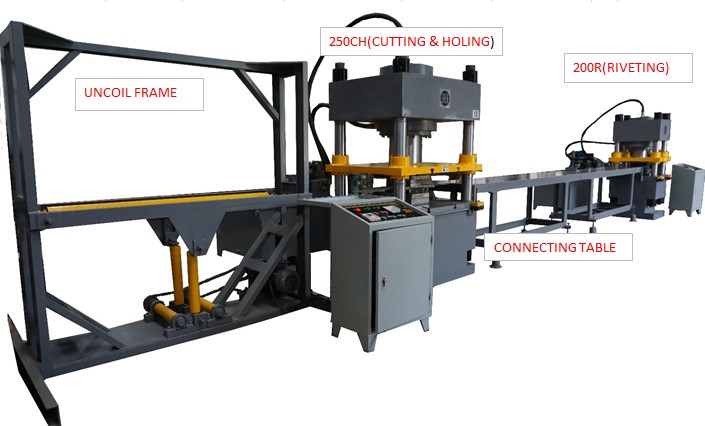

TWO PRESSES TO EXECUTE THIS JOB:

  • Press for Cutting & Holing Model: 250CH
  • Press for Riveting Model: 200R

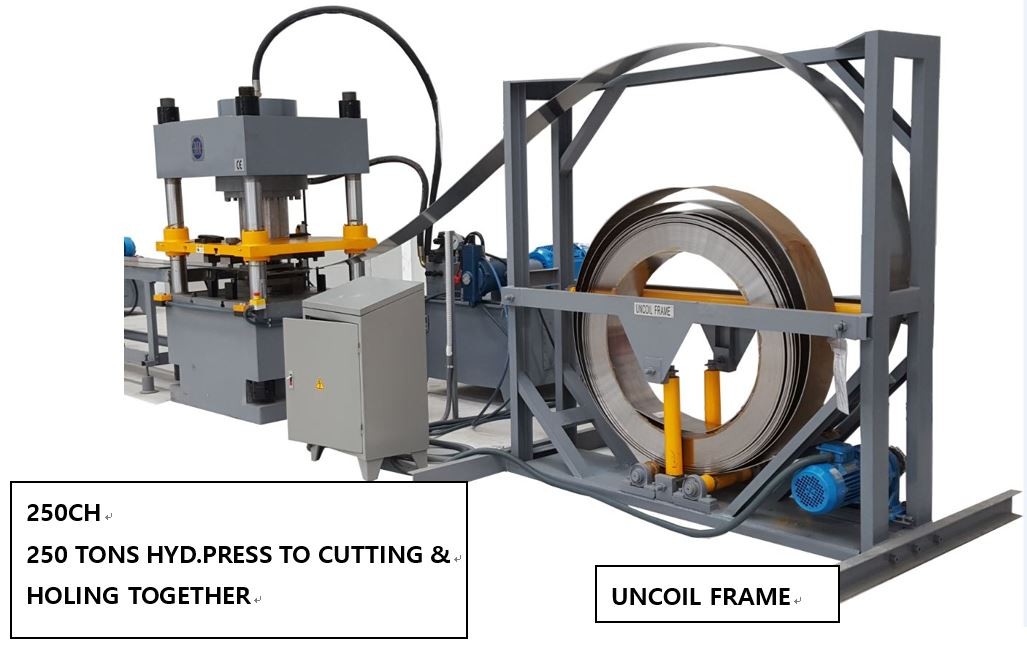

250TONS HYD. PRESS FOR CUTTING & HOLING

  • Cold press machine to cut steel fram blank in coil, holing with high performance Hydraulic Press with specific mould.
  • This press can work very high performance to cut & holing gang saw blank in one mould operation.
  • This press is very strong and heavy design to get good finishing of cutting & holing enable to make riveting in flow line machine. Press is directly connect with uncoiling device to keep working.

250TONS HYDRAULIC PRESS FOR CUTTING & HOLING

Cold press machine make cutting & holing steel frame blank in coil with high performance hydraulic press w. specific mould

TECHNICAL DATA

  • Hydraulic press for riveting
  • Compression force: 200 tons
  • Max. Open Distance: 300mm
  • Working Table: 800 X 800mm

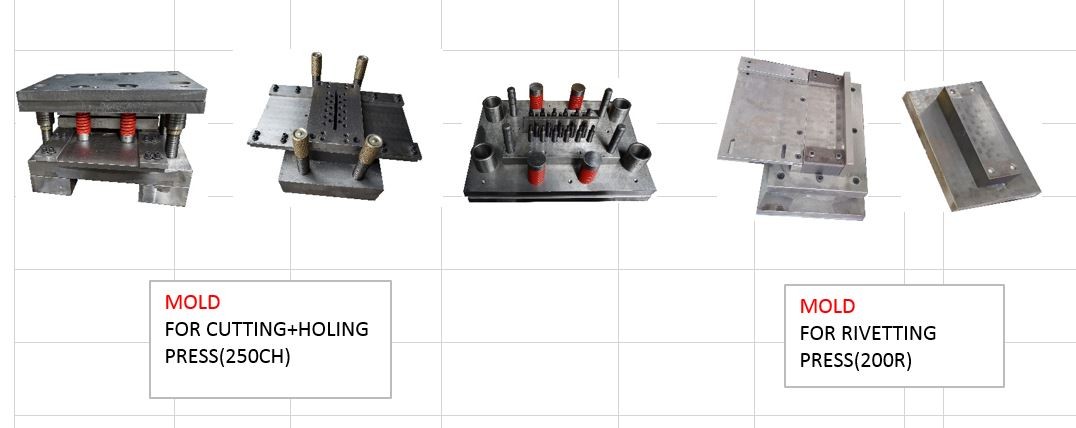

  • Mould: One for Riveting
  • Dimension
    • Press: 740L X 740W X 1,979Hmm
    • Hydraulic Unit: 800L X 750W X 1,300Hmm

WORKING PROCESS

  1. Coil could be located at coil frame.
  2. Uncoiling
  3. Cutting & Holing by press with cutting + Holin

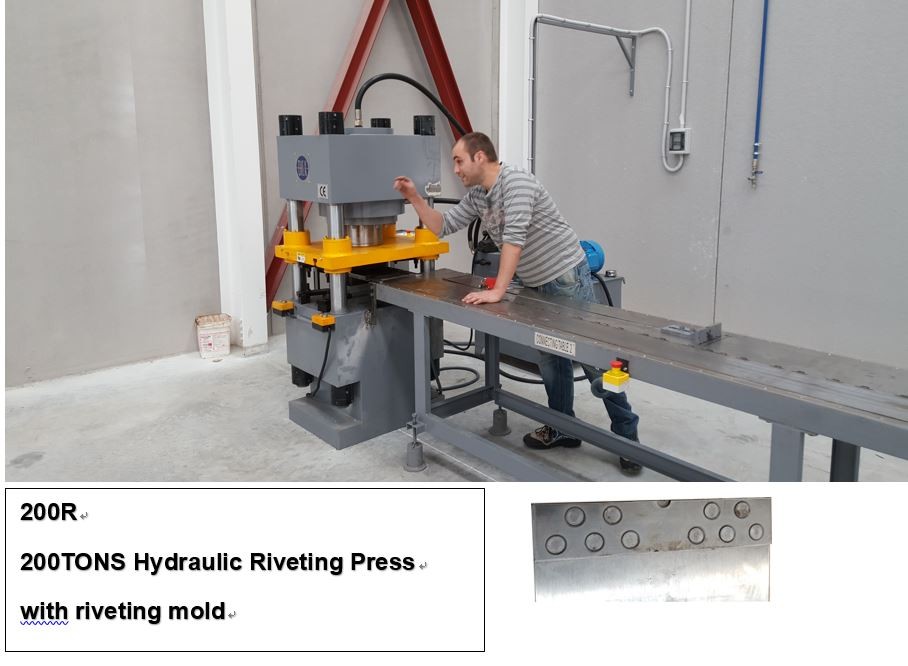

200TONS HYDRAULIC PRESS FOR RIVETING

Cold press machine make riveting  steel frame blank in coil with high performance hydraulic press with specific riveting mould



TECHNICAL DATA

- HYD.PRESS FOR RIVETIING

- COMPRESSION FORCE      :                         200 TONS

- MAX.OPEN DISTANCE:                                 300MM

- WORKING TABLE:                                        800X800MM

- MOULD

ONE FOR RIVETING

DIMENSION:PRESS:740Lx740Wx1970Hmm

                   HYD.UNIT:800Lx750Wx1300Hmm

WORKING PROCESS

1. After cutting & holing, blae move to riveting press using connection table.

2. Assemble Rivet

3. Pressing Rivet by rivet press

NOTE

This technical data may be used only for guideline of production. DIEX Corp. will reserve the right to introduce any technical modification to its own machines, also in contract acquired, which its irrevocable decision are improvements. Therefore, any datum given on the catalogues & and data sheet has only indicative value.
