LWB15/2

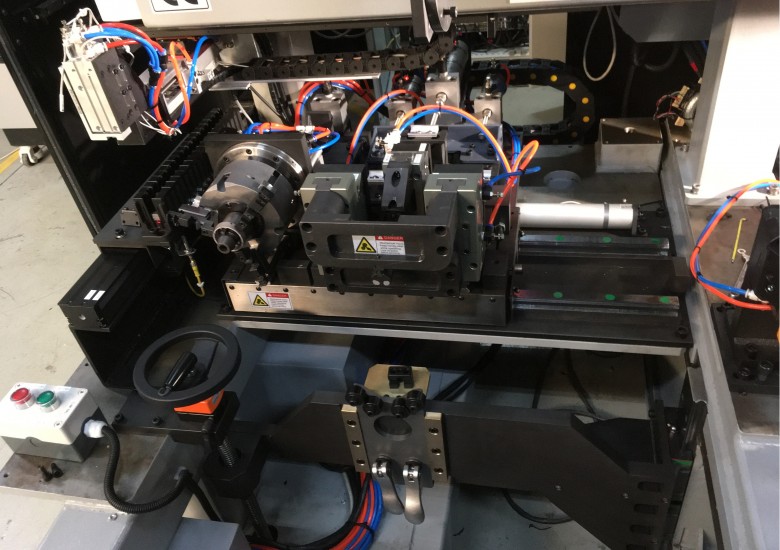

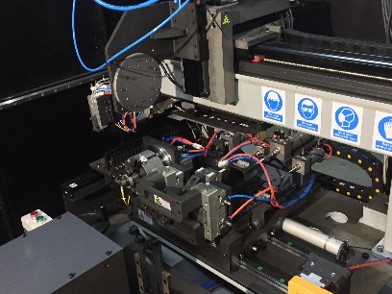

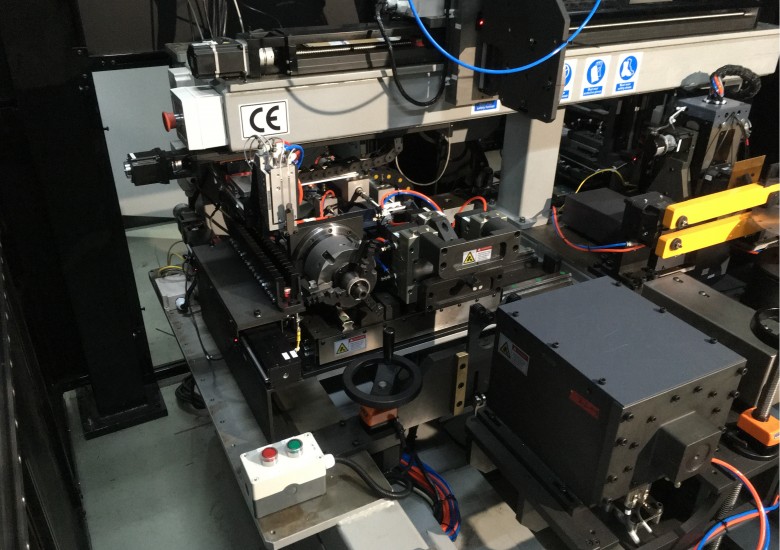

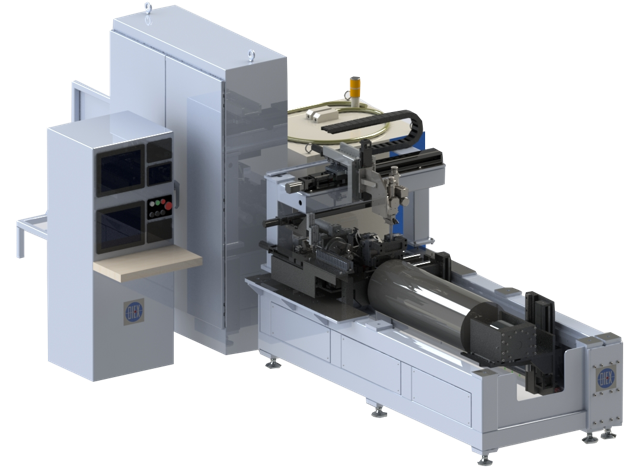

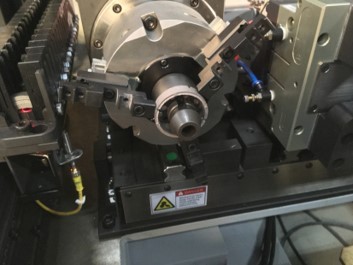

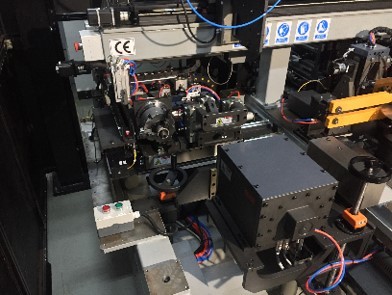

LASER WELDING BENCH : LWB15/2

Laser welding bench to weld saw blade from 4 inch to 24 inch by semi-auto way. Using CO²Laser or Fiber Laser Generator.

LASER WELDING BENCH MODEL NO.  LWB15/2

Laser welding bench to weld saw blade from 4 inch to 24 inch by semi-auto way.

Using CO²Laser or Fiber Laser Generator.

MACHINE FEATURES

  • SEMI AUTO WELDING

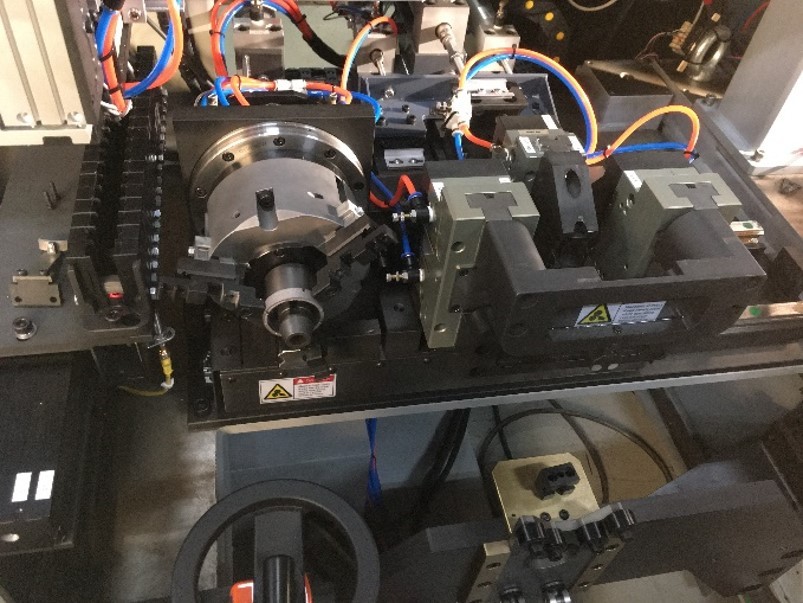

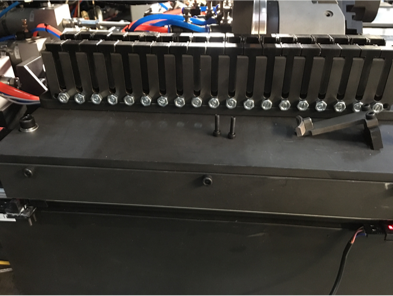

  • MAGNET SEGMENT CLAMPING

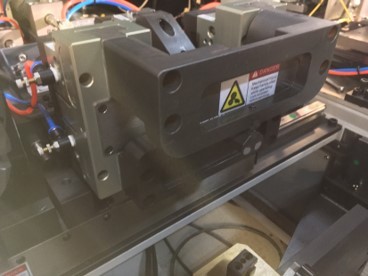

  • PRESSING JIG AT 45 DEGREE HELP TO FIX SEGMETN ON THE MAGNET TABLE.
  • EASY TO OPERATE

TECHNICAL DATA

  • POWER SUPPLY   :  220/380V 3P(4WIRE), 50/60Hz
  • MAX. POWER CONSUMTION   : 6KVA
  • MAX. AIR CONSUMTION   :  20l/min
  • APPLICATION  :  SHANK     :  4 ~ 24 (INCH)
  • SEGMENT  :  +/-length  :  18.0-50.0mm

                         :  +/-height  :  5.0 - 25.0mm

                         :  +/-thickness  :  1.2 - 4.5mm

  • TABLE ROTATION SPEED  :  4 - 24 r.p.m.(BASED ON WELDING SPEED 6m/min)
  • TABLE FEEDING STROKE  :  160mm(max)
  • PICK & PLACE STROKE     :  80mm(max)
  • OVERALL DIMENSION      : L.: 3400mm  W. :  1000mm   H. :  1150mm
  • WEIGHT         :    APPROX.1400KG

PRODUCTIVITY

NOTE

This technical data may be used only for guideline of production. DIEX Corp. will reserve the right to introduce any technical modification to its own machines, also in contract acquired, which its irrevocable decision are improvements. Therefore, any datum given on the catalogues & and data sheet has only indicative value.

Special machines & Equipments  for Diamond Tools.
DIEX CORP. #1104 -101,Empire,127 Uisadang-daero,Yeongdeungpo-Gu,Seoul Korea.
www.diex.comsales@diex.com / T. +82 70-8877-4563 / F. +82 2-780-0098
