GAB10 : Auto Gang Saw Brazing Machine

AUTO GANG SAW BRAZING MACHINE : GAB10

Seg repair option

AUTO GANGSAW BRAZING MACHINE : GAB10

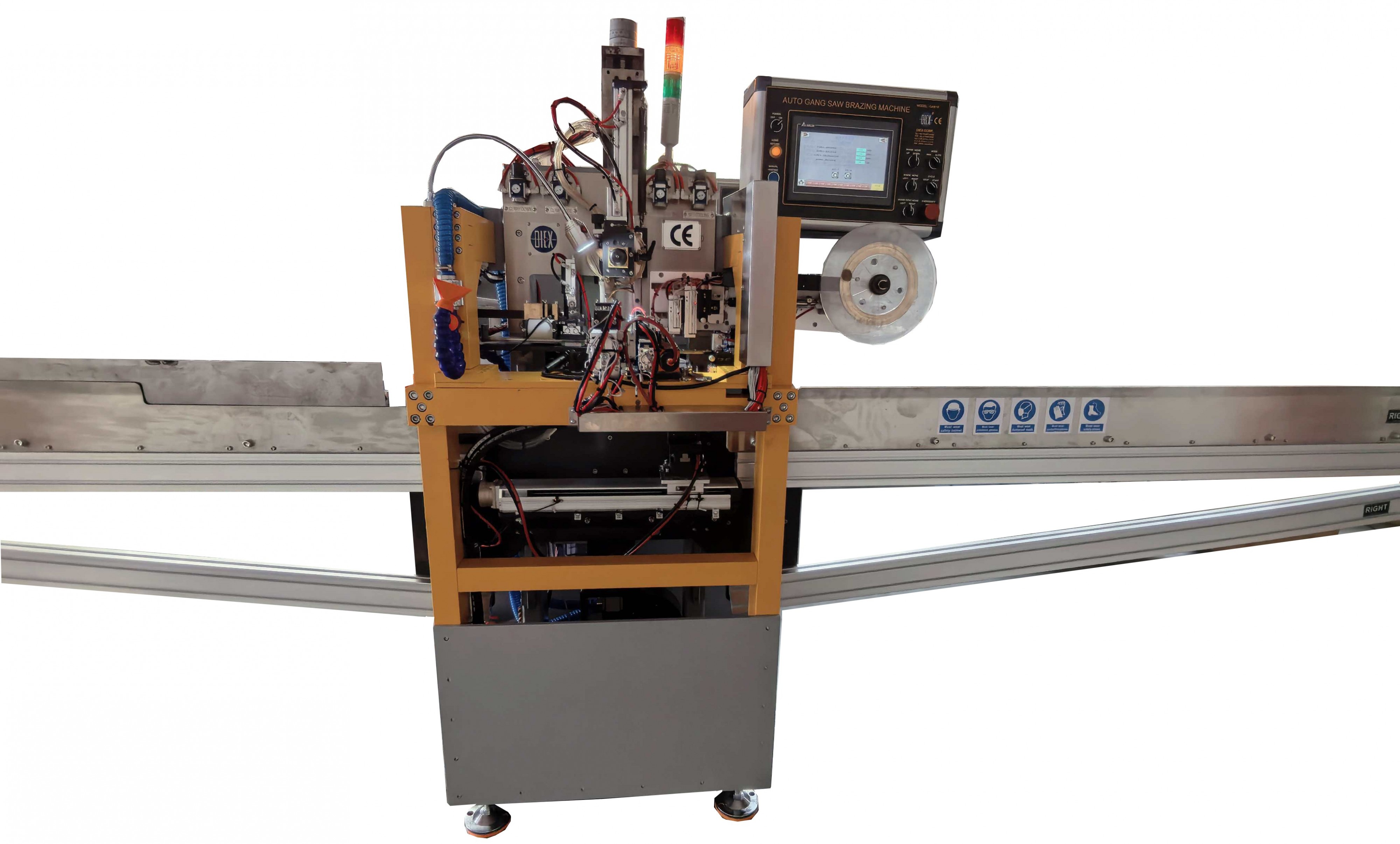

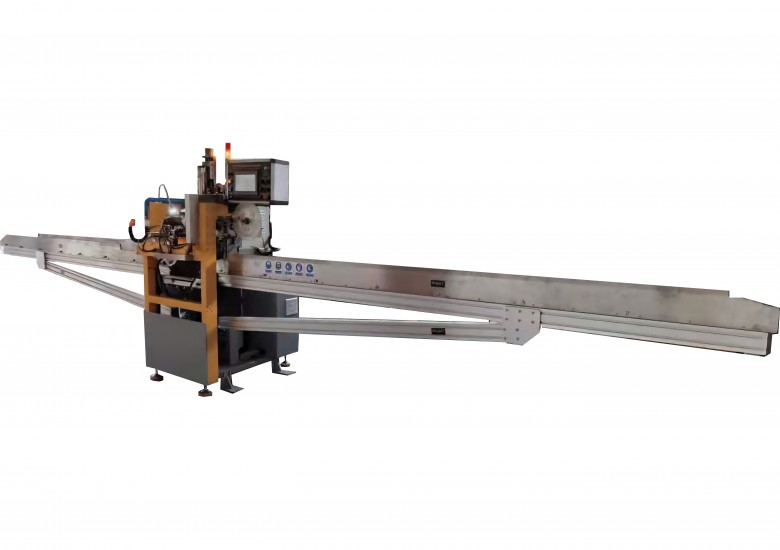

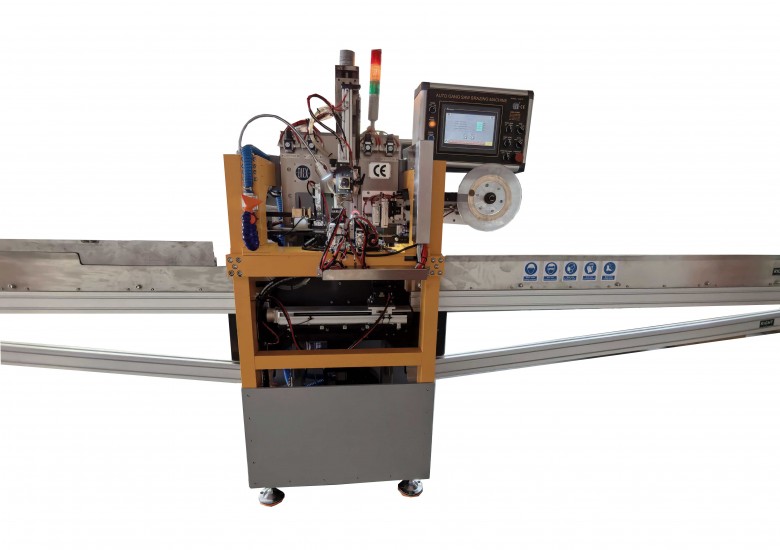

Automatic induction brazing machine for diamond segments for gang-saw blade .

Option: Segment Take out function

Full Auto Brazing Position adjustment system for arrow shape shank brazing

MACHINE FEATURES

- Automatic feeding segments, transport,shank feeding of silver solder enable good quality of brazing.
- Fully automatic control by PLC & monitor program.
- High efficiency of brazing by H.F Induction generator.
- Every segment distance (pitch control)programed at Touch Screen.(36 program available)
- Heating by Time or Pyrometer as selection.
- Pitch control by Servo Motor+Ball Screw to endusre seg.distance.
- Auto segment position adjustent system via stepping motor and sensor for arrow shape gang saw.

TECHNICAL DATA

- MODEL NO. :                GAB10

- POWER SUPPLY :        220/380V, 3PHASES, 50/60Hz

                                       (Different voltages and frequencies on request)

- ELECTRIC POWER  :      22 KVA

- COOLING WATER :        20 liter/min - 1~3 BARS

- AIR CONSUMPITION  :   30 liter/min - 6 BARS

- Segment Length            from 18 to 50 mm

- Segmetn Height             from 5 to 25 mm

- Segment Thickness        1.5~12mm

- Segment No                   1~34 or more

- Brazing Saw Size           2.1M~5.5M

- Program possible stored    up to 36 programs

- OVERALL DIMENSIONS : L: 7,700Lx1,150Wx2,200 H mm

- WEIGHT(INDICATIVE) :     Approx. 800 KG

- OPTION :                   Cooling system by Chiller / segment take out

Auto Segment Repair Function

For one segment or few segments repair or re positioning,we have delveloped new program to make one touch operation by

special program.

NOTE

This technical data may be used only for guideline of production. DIEX Corp. will reserve the right to introduce any technical modification to its own machines, also in contract acquired, which its irrevocable decision are improvements. Therefore, any datum given on the catalogues & and data sheet has only indicative value.
