SAMGS4/18C+R (Two Machines)

FULL AUTO SIDE GRINDING  M/C with Robot Loading & Unloading : SAMGS4/18C R (two machines)

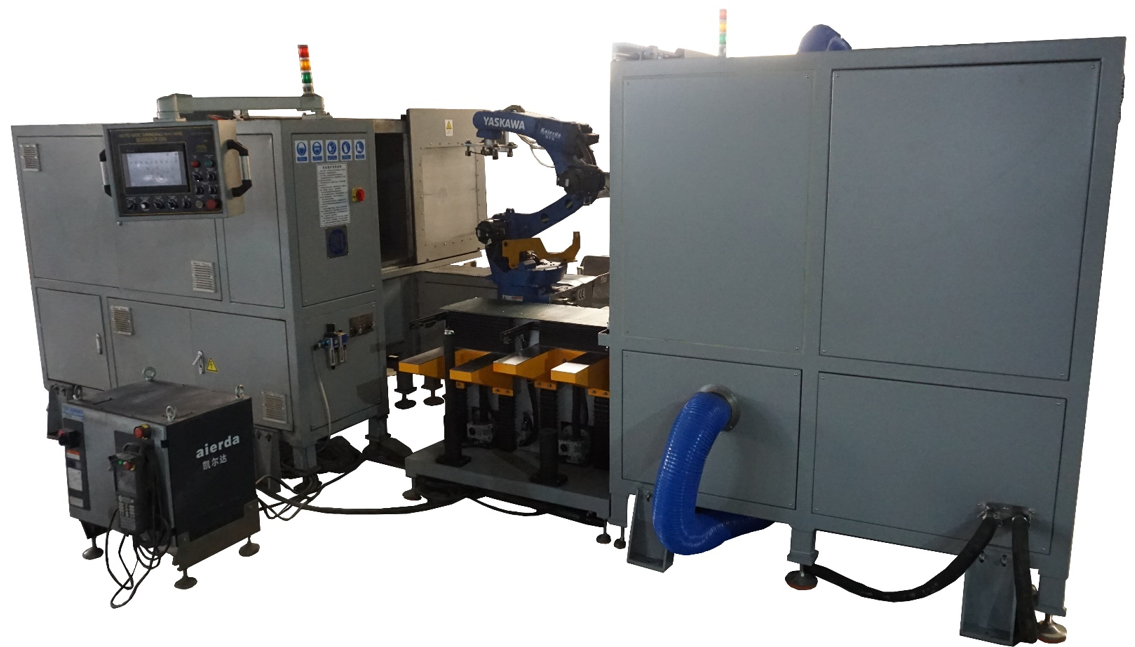

FULL AUTO SIDE GRINDING  M/C with Robot Loading & Unloading : MODEL:SAMGS4/18C+R (TWO MACHINES)

This machine is designed to dress & grind side part of many pieces diamond blades like small cutter, laser saw, etc to increase productivity separating front grinding process in full auto way by using servo motors for infeeding and hydraulic unit for oscillation of main spindle with Robot loading & unloading.

NOTE

  • Innovative Robot with 6 Axis loading & unloading system could completely remove labor for the blade grinding with high efficiency
  • One Robot can supply blade to two machines with different diameter.
  • Chraging blade on Loading position & discharging blade with separate trolley can make operation more efficient way.

LAYOUT-TWO GRINDING MACHINE WITH ONE ROBOT (High Efficiency)

LAYOUT-ONE GRINDING MACHINE WITH ONE ROBOT

MAIN FEATURES

  • AUTO SHANK CLAMPING SYSTEM BY HYDRAULIC CYLUNDER
  • AUTO INFEEDING OF GRINDING WHEELS BY SERVO MOTORS
  • ADJUSTABLE MAIN SHAFT ROTATION SPEED
  • ADJUSTABLE OSCILLATION OF MAIN SPINDLE BY HYDRAULIC CYLINDER
  • DUST & ABRASIVE COLLECTING SYSTEM
  • AUTO LUBRICATION SYSTEM
  • COLOR TOUCH SCREEN MONITOR
  • AUTO LOADING & UNLOADING BY ROBOT
  • BLADE CHARGING & DISCHARGING BY TROLLY

TECHNICAL DATA

  • MODEL NO. :SAMGS4/18C+R
  • POWER SUPPLY :220/380VOLT, 3PHS, 50/60Hz
  • MAX. POWER CONSUMPTION :17KVA
  • MIN.DIAMETER: 230mm  MAX.DIAMETER:450mm
  • GRINDING RANGE : MIN. DAMETER: 230mm / MAX. DIAMETER: 450mm
  • DIMENSION FOR WHEEL: 300mm x 75mm x 25,40mm (OD X ID X T)
  • WHEEL ROTAION :1,700~1800RPM
  • SPINDLE ROTATION :60~140 RPM at 50Hz 60~170RMP at 60Hz
  • LOADING & UNLOADING6 Axis Robot 12Kg 1.44meter Working Diameter
  • OVERALL DIMENSION :LENGTH : 3,100mm (LENGTH : 5,400mm) /  (TWO MACHINES)WIDTH : 2,600mm (WIDTH : 2,600mm)
  • HEIGHT : 2,200mm (HEIGHT : 2,200mm)
  • WEIGHT(APPROX.) :3,000Kg
  • PRODUCTIVITY160~180 Baldes/hour for 300mm

NOTE

This technical data may be used only for guideline of production. DIEX Corp. will reserve the right to introduce any technical modification to its own machines, also in contract acquired, which its irrevocable decision are improvements. Therefore, any datum given on the catalogues & and data sheet has only indicative value.

Advanced Machines & Equipment for Diamond Tools
DIEX CORP.  #1104 -101,Empire, 127 Uisadang-daero, Yeongdeungpo-Gu, Seoul Korea.
www.diex.com / sales@diex.com / T. +82 70-8877-4563 / F. +82 2-6442-3804
