Auto Wire Bead Sharpening Machine : WSM50

designed to expose diamond of sintered wire bead automatically with very high performance.

AUTO WIRE BEAD SHARPENING MACHINE / WSM50/100

This machine is designed to expose diamond of sintered wire bead automatically with very high performance.Dual abrasive wheel system allows to remove plastic/rubber and sharpen wire very effectively.

It is possible to adjust length of sharpening wire bead upon customer request.

MACHINE FEATURES

  • Effective Tension& rotation allows very homogenous sharpening of diamond on the bead.
  • Fast sharpening by Abrasive wheel.
  • Main roller & auxiliary roller can move wire saw in effective way.
  • Dual wheels system gives effective production
  • Positioning & Oscillation for both wheels are controlled by servo motors
  • Effective dust collection system.

TECHNICAL DATA

Model No.

WSM50: Max. 50m for multi & quarry wire

Power Supply

380v, 50/60HZ, 3Phase

(different voltage/frequencies available)

Electric Power 10KW
Abrasive wheel 2.2 KW*4P
Wire rotation motor1 2.2KW*4P
Wire rotation motor2 4KW*4P
Main Speed Approx. 4~6m/sec adjustable
Air Consumption 50liter/min 6~7kg/cm2
Main Shaft Roller φ300*75*40mmT
Auxiliary Shaft Roller φ300*75*40mmT
Tension Part φ300*75*40mmT
Productivity 4Wires/hour
Overall Dimensions 3,850mm x 900mm x 2,300mm
Machine Weight (Indicative) Approx. 2,000kg

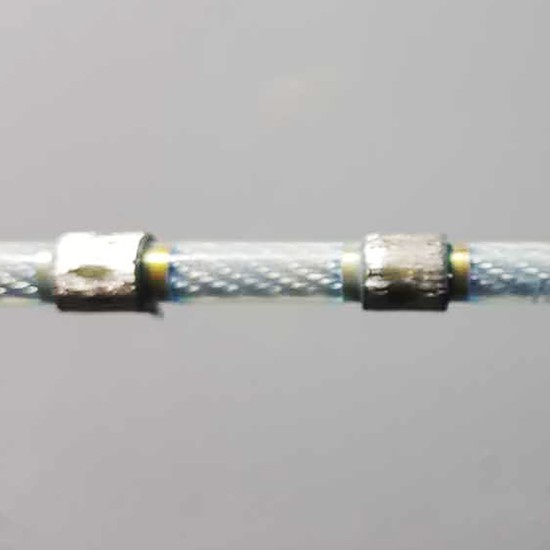

Multi Wire After Sharpening by WSM

NOTE

This technical data may used only for guideline of production. DIEX Corp. will reserve the right to introduce any technical modification to its own machines, also in contract acquired, which is irrevocable decision are improvement, therefore, any datum given on the catalogue & data sheet has only indicative value.
