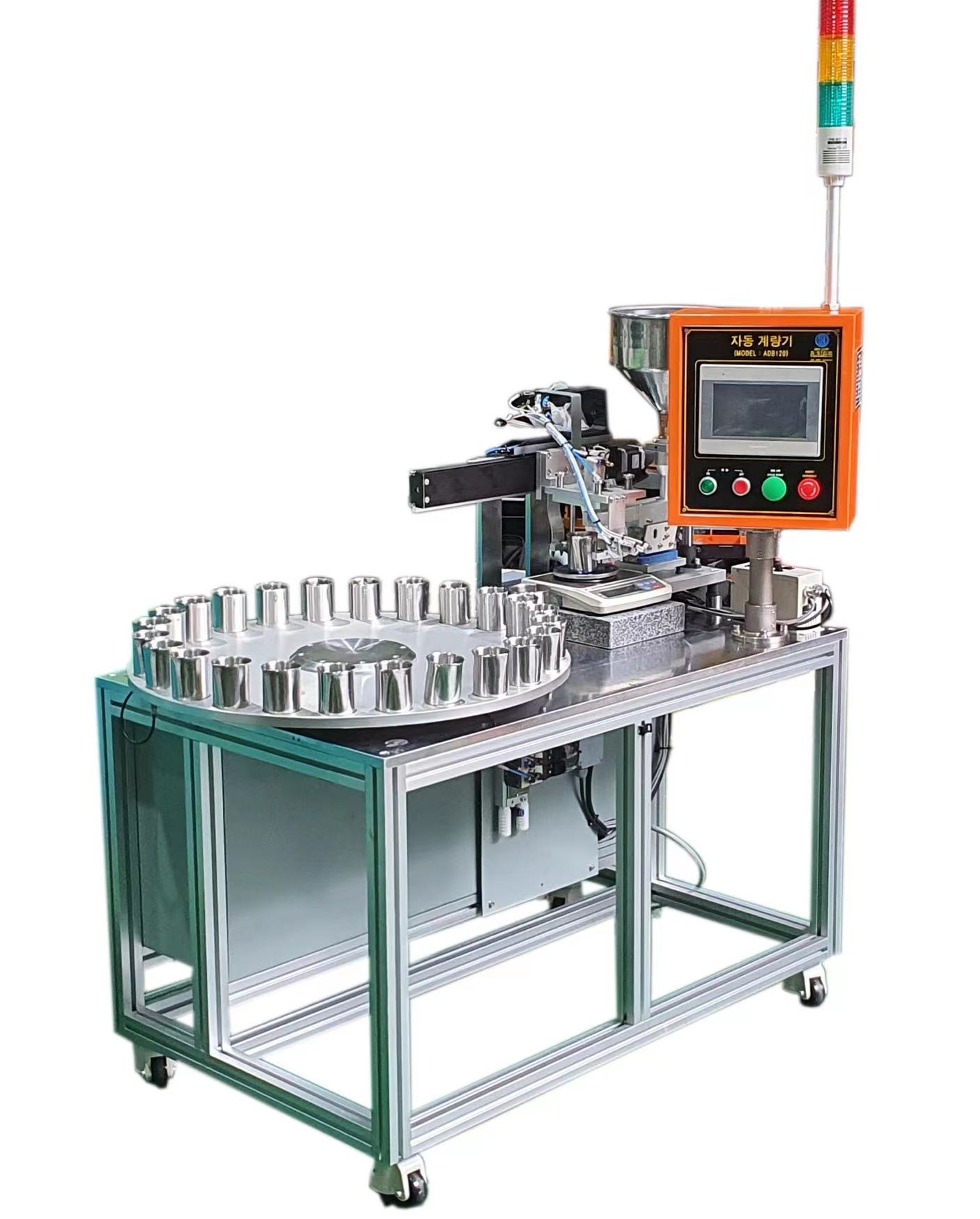

ADB120 : Auto Dosing Machine

AUTO DOSING MACHINE:ADB120

This machine automatically weighs in the metal powder scale method and automatically puts 24 cups on it in very high precision weighing control inside of globe box. It is designed to be stored separately.

AUTO DOSING MACHINE

MODEL NO. ADB120

MACHINE FEATURES

  • Hopper & powder feeding device
  • Weighing scale
  • Transfer feeder
  • Loading rotator
  • Electric control device

TECHNICAL DATA

MAXIUMUM WEIGHING 120g
HOPPER CAPACITY 4 LITERS
TOLERANCE +/- 0.05g/TIME OF WEIGHING
POWDER SUPPLY METHOD 3-STAGE VIBRATION METHOD
POWDER SUPPLY RAIL MATERIAL ALUMINUM (HARD TREATMENT)
VIBRATION AND FREQUENCY SETTING DIGITAL METHOD
WEIGHING COMPLETE POWDER TRANSFER SYSTEM SERVO SYSTEM
DEFECT SELECTION POSSIBLE: TRANSFER TO DEFECTIVE TRANSFER POSITION
MEASURING CUP SIZE UPPER DIA 65 X LOWER DIA 37 X HEIGHT H45mm
MEASURING CUP MATERIAL SUS 316
POWDER LOADING METHOD SERVO ROTATION METHOD: 24 DIVISIONS, LOADING PLATE MATERIAL: ALUMINUM
WEIGHER USE OF SCALE
WEIGHING SETTING METHOD RS232 COMMUNICATION - SET IN HMI
STORAGE CAPACITY 20 DATA STORAGE
FRAME ALUMINUM PROFILE
DIMENSION 1200x800x1600mm
WEIGHT (APPROX.) 300KG



This special high precision dosing machine is recommended to weigh very special powder like W powder & Zr Powder at

R & D even inside of Globe box to avoid oxidation during dosing.

NOTE

This technical data may be used only for guideline of production. DIEX Corp. will reserve the right to introduce any technical modification to its own machines, also in contract acquired, which its irrevocable decision are improvements. Therefore, any datum given on the catalogues & and data sheet has only indicative value.
