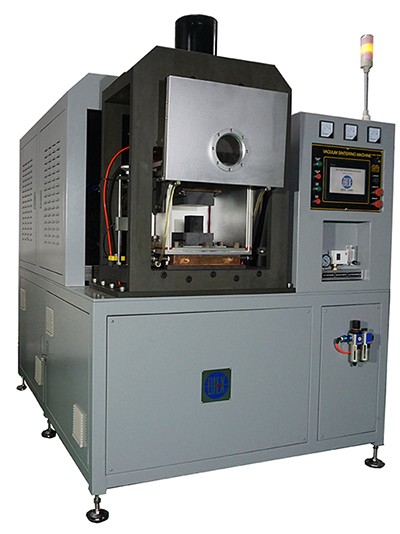

VS100/3 : Vacuum Sintering Machine

VACUUM SINTERING MACHINE : VS100/3

One station automatic hot press machine with advanced technology for production of diamond segments in horizontal loading & unloading suitable for various kind of small quantity production.

Vacuum Sintering Machine / VS100/3

One station automatic hot press machine  with advanced technology for production of diamond segments in horizontal loading & unloading suitable for various kind of small quantity production.

MACHINE FEATURES

  • Automatic adjustment temperature, pressure and sintering time, including 15 different values available.
  • Computer with storing possibility of 32 programs.
  • Color TFT screen displaying process curves
  • Automatically diagnosing faults and displaying in english.
  • Sintering through graphite or special steel moulds.
  • Compression force increasing proportional to temperature.
  • Hydraulic power pack with computer controlled pressure.
  • Cooling circuit, for all vital parts of the machine.
  • Automatically vacuumizing chamber or appling gas N2 in sintering process.
  • Displaying the displacement or the size of the segment.(Option)

TECHNICAL DATA

Type Vacuum
Power Supply 380v, 50/60HZ, 3Phase
Max. Power Consumption 100KVA
Tempterature Regulation & Reading Range 400~1,200℃
Compression Force Adjustment 5000 ~ 40,000Kg
Controller PLC & PC
Sintering Area 100cm2>850℃
Max. Vacuum Degree 70mmHg
Machine Dimensions Approx.1.600W x 1,600L x 2,250H
Machine Weight Approx.3,500 kg

NOTE

This technical data may used only for guideline of production. DIEX Corp. will reserve the right to introduce any technical modification to its own machines, also in contract acquired, which is irrevocable decision are improvement, therefore, any datum given on the catalogue & data sheet has only indicative value.
