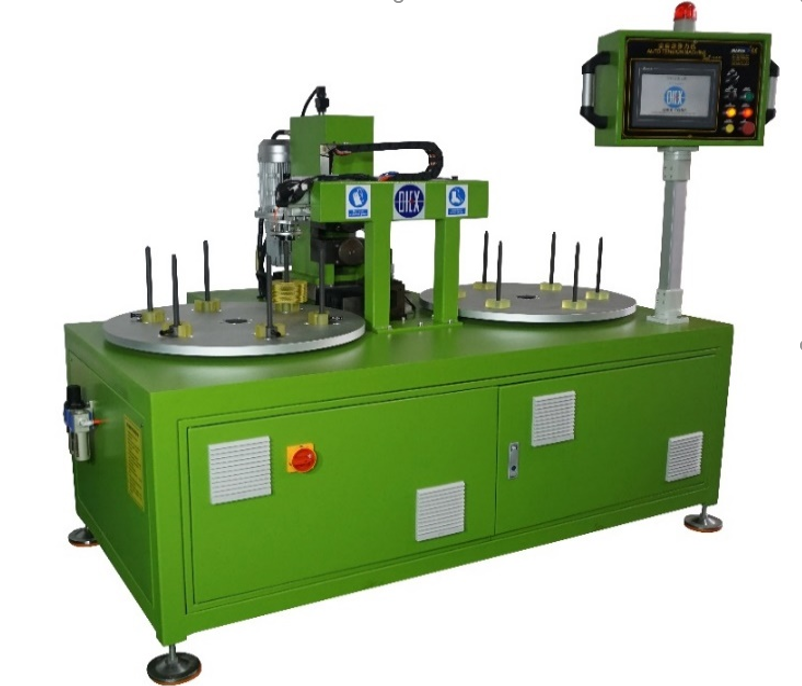

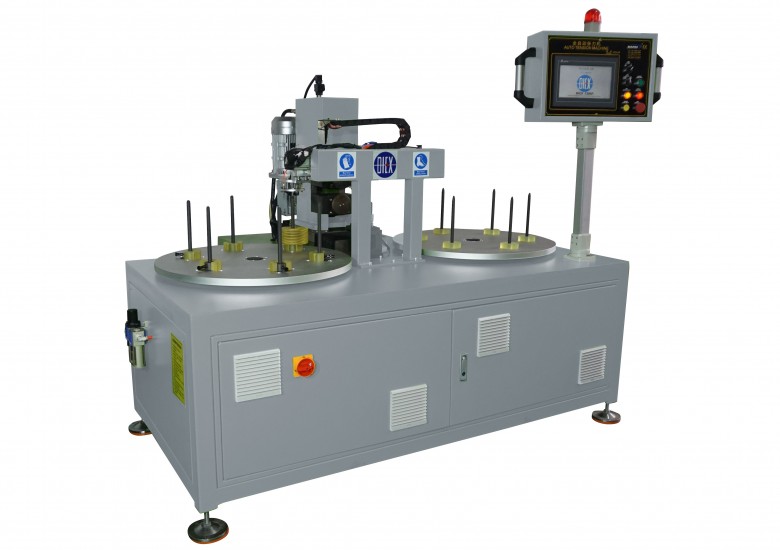

ATM4/9 : Auto Tension Machine( 6stations -Loading & Unloading)
Tension the φ100~230mm saw by automatic loading and automatic rolling method. The rolling position is precisely controlled by the servo motor.
MAIN FEATURES
1. Automatic Saw Loading & Unloading with 6 stations
2. Angle precision division with divider
3. Automatic rolling tension
4. Precision control of rolling position with servo motor
5. Precision control of rolling length with encoder, adjustable rolling length with compensation value
6. Installation with 10” touch screen
7. Control roller rotation speed with inverter
8. Precision control of rolling pressure with proportional valve, pressure display with pressure sensor
TECHNICAL DATA

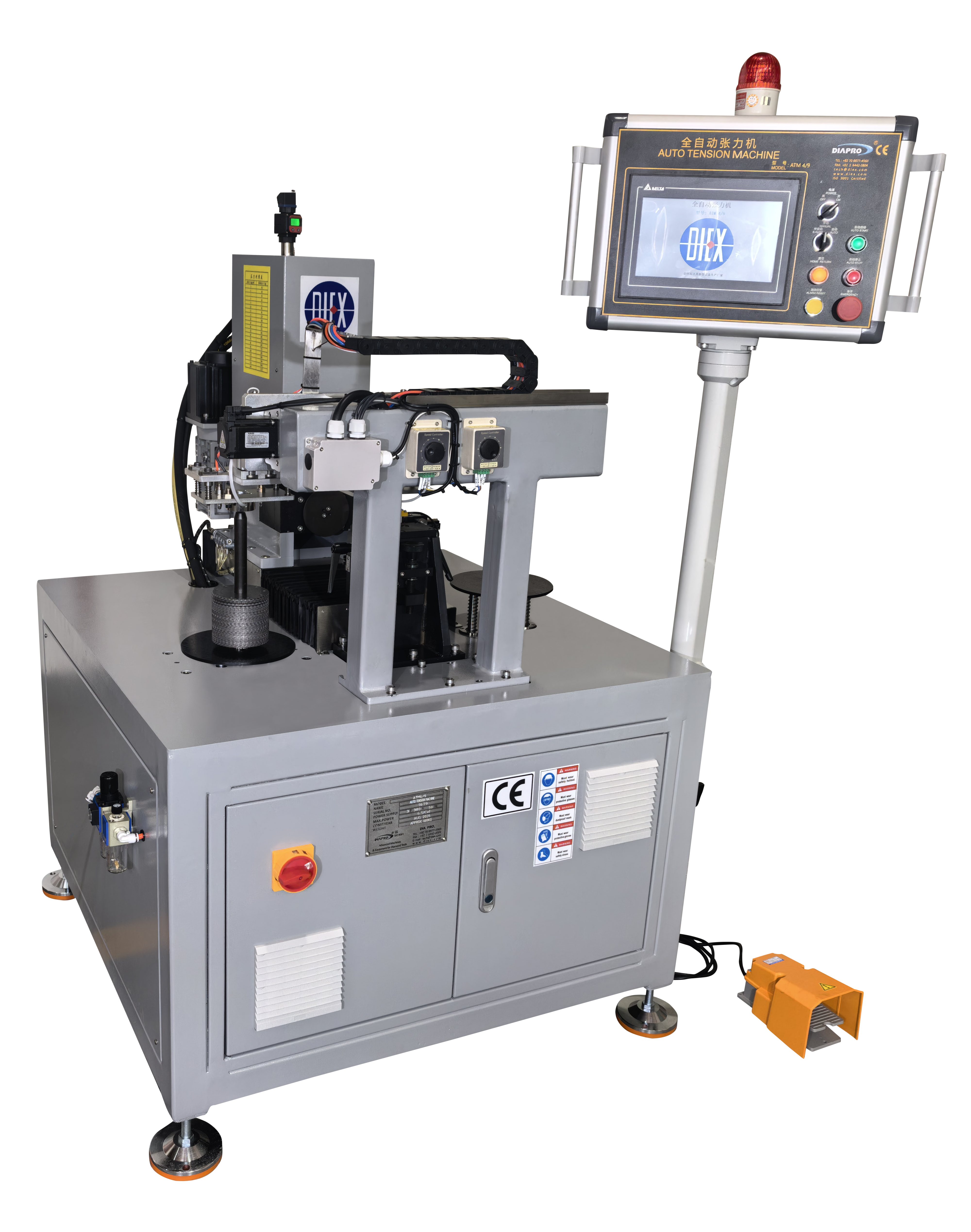

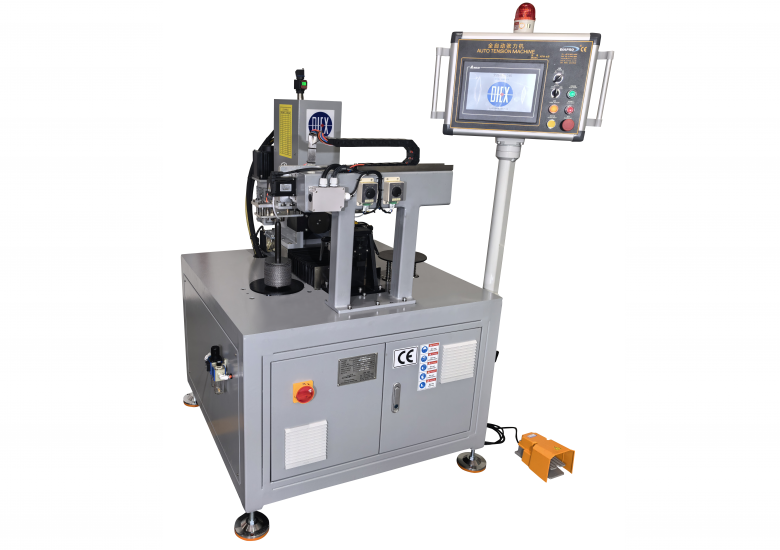

AUTO TENSION MACHINE with one station Loading & Unloading
Model: ATM4/9
(100~250mm)
MAIN FEATURES
* Automatic Blade Loading & Unloading with one station.
* Automatic rolling tension;
* Precision control of rolling position with servo motor
* Precision control of rolling length with servo motor, adjustable rolling length with compensation value;
* Precision control of rolling pressure with proportional valve, pressure display with pressure sensor;
* Installation with 10” touch screen;
TECHNICAL DATA
- ModelATM 4 / 9
- Power supply380V, 3P, 50/60 Hz
- Maximum electricity consumption4.5KW
- Air consumption0.4~0.6MPa, 3L/min
- Tension rangeΦ100~450mm
- Auto Loading & Unloading rangeΦ100~250mm
- Roller rotation speed 0~50RPM/min
- Production efficiency500~600PC/H (based on Φ100mm)
- Equipment dimensions1000L×1100W×1750H（mm）
- Weight Approx. 660Kg
NOTE
This technical data may be used only for guideline of production. DIEX Corp. will reserve the right to introduce any technical modification to its own machines, also in contract acquired, which its irrevocable decision are improvements. Therefore, any datum given on the catalogues & and data sheet has only indicative value.
